(35.359.AB) - CONTROL VALVE

Запчасти Case IH FARMLIFT 742 (35.359.AB) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

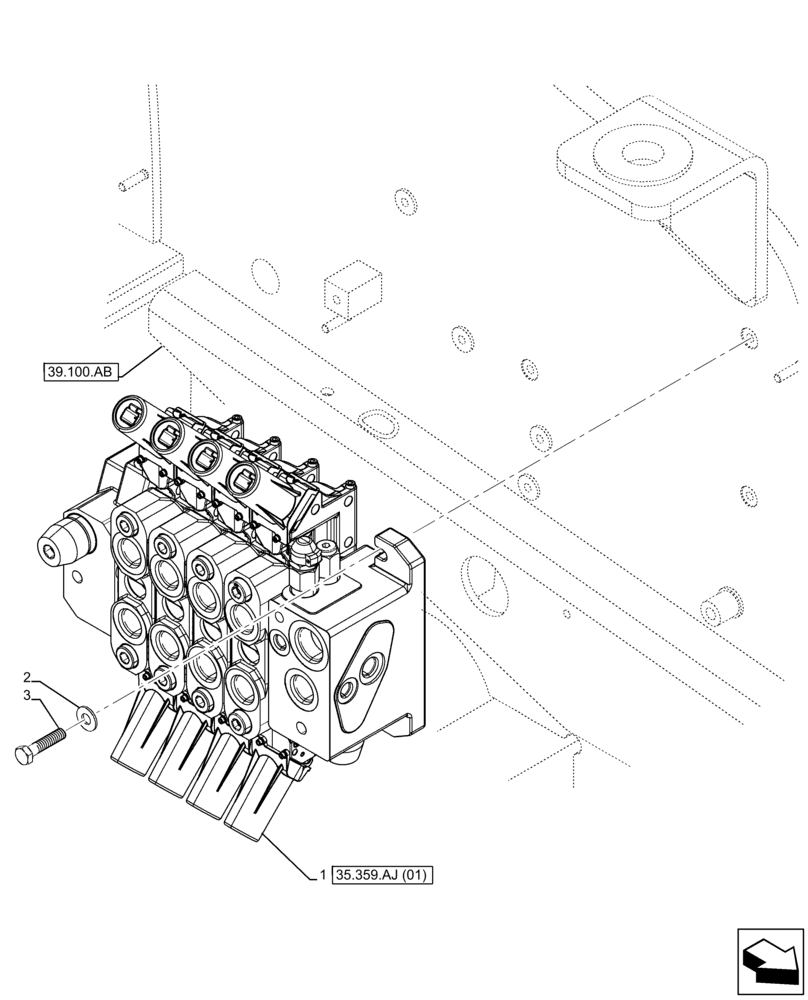

Схема запчастей Case IH FARMLIFT 742 - (35.359.AB) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS
39.100.ab
35.359.aj (01)
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84531578

CONTROL VALVE

ASSY

1шт.

See Directional Control Valve Components also in Figures 35.359.AJ (01), 35.359.AJ (02), 35.359.AJ (03), 35.359.AJ (04), 35.359.AJ (05), 35.359.AJ (06), 55.036.AO (01), 55.036.AO (02), 55.036.AO (03)

1шт.

2

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

3

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

3шт.

Выбрано товаров: 4
