Запчасти Case IH FARMLIFT 742 (35.204.BJ) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, VALVE (35) - HYDRAULIC SYSTEMS

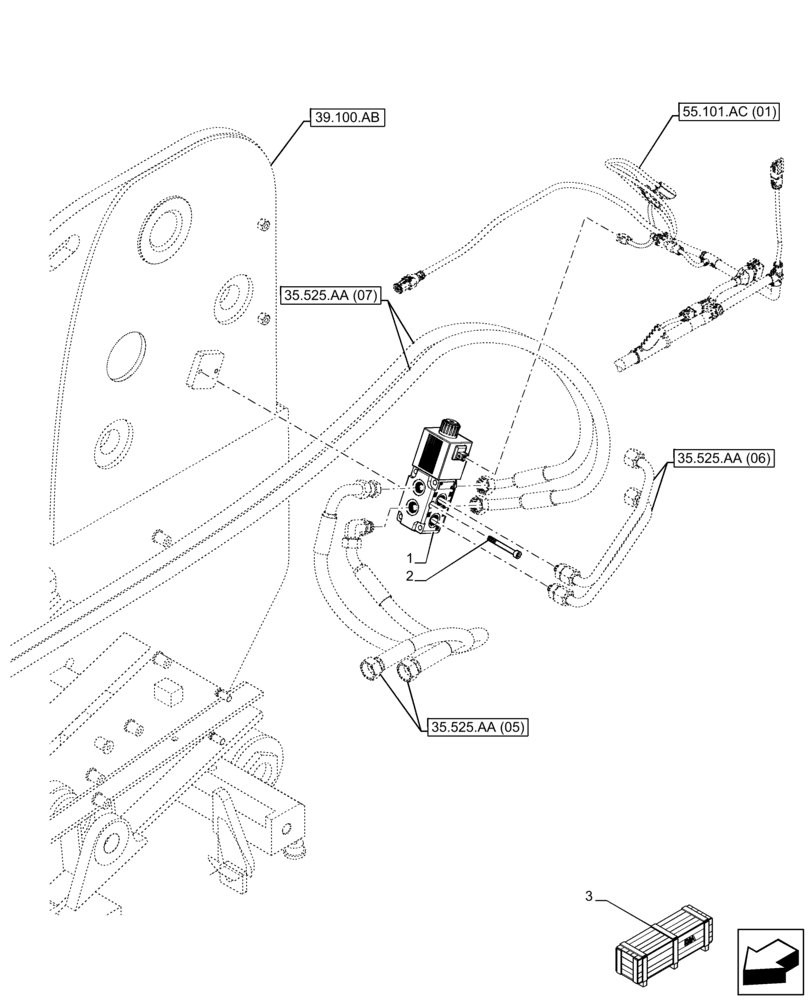

Схема запчастей Case IH FARMLIFT 742 - (35.204.BJ) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, VALVE (35) - HYDRAULIC SYSTEMS
35.525.aa (06)
2
1
35.525.aa (07)
55.101.ac (01)
3
35.525.aa (05)
39.100.ab

Артикул

Название

Примечание

Количество

1

87553474

VALVE

Rear Hydraulic Auxiliary

1шт.

2

87015319

SCREW,M8 x 70mm, Cl 8.8

2шт.

3

47613198

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, LM6.32 NRC, LM6.35 NRC

1шт.

3

47613205

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1, 2

1шт.

Only for Models FARMLIFT 632, FARMLIFT 635

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47613213

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 735, FARMLIFT 742, FARMLIFT 935, FARMLIFT 735 DA

1шт.

3

47610633

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, LM7.42, LM7.42 FLEX, LM9.35, LM9.35 FLEX, LM7.35 DA, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 14
