(88.100.89[02]) - CARRIER, FORK

Запчасти Case IH FARMLIFT 735 (88.100.89[02]) - CARRIER, FORK (88) - ACCESSORIES

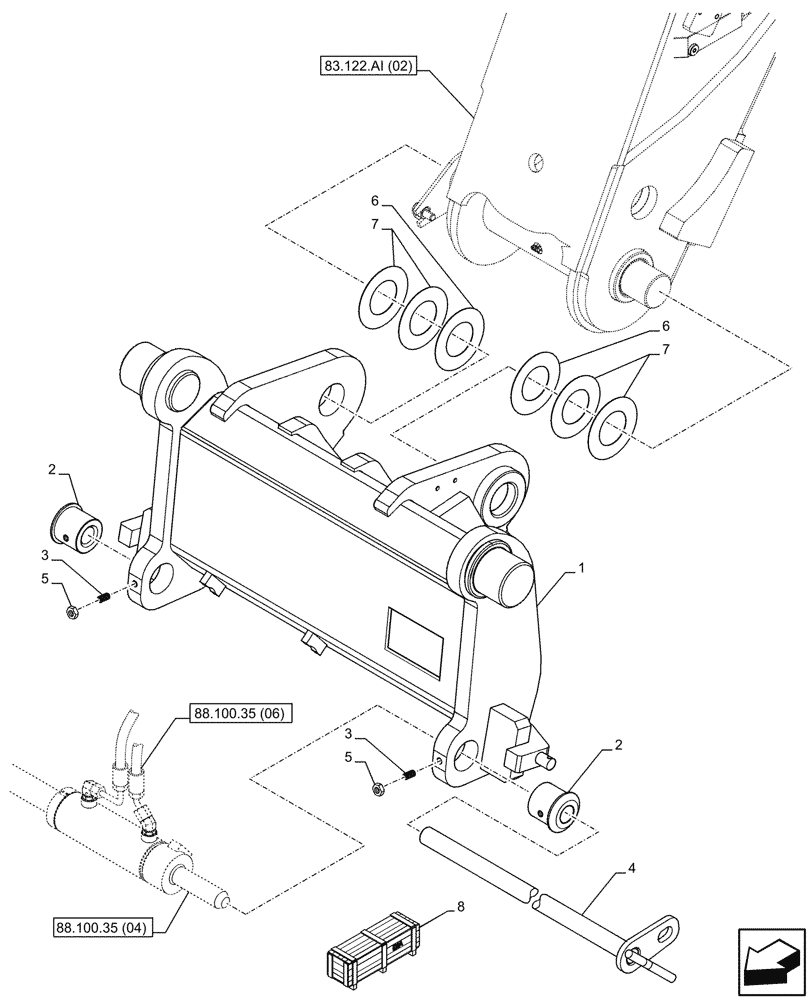

Схема запчастей Case IH FARMLIFT 735 - (88.100.89[02]) - CARRIER, FORK (88) - ACCESSORIES
88.100.35 (04)
88.100.35 (06)
3
2
83.122.ai (02)
4
1
3
7
2
6
6
5
5
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47957923

CARRIER

1шт.

2

47810798

BUSHING

2шт.

3

47688079

SCREW

2шт.

4

47672982

PIN

1шт.

5

8475948

NUT,M10 x 1.5, Cl 8

2шт.

6

47370197

SHIM

0.5mm Thk

2шт.

7

47370166

SHIM

1mm Thk

4шт.

8

47871051

CONSTRUCTION DIA

Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

8

47871055

DIA KIT, HARVESTER

Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
