(88.100.89[01]) - CARRIER, FORK

Запчасти Case IH FARMLIFT 735 (88.100.89[01]) - CARRIER, FORK (88) - ACCESSORIES

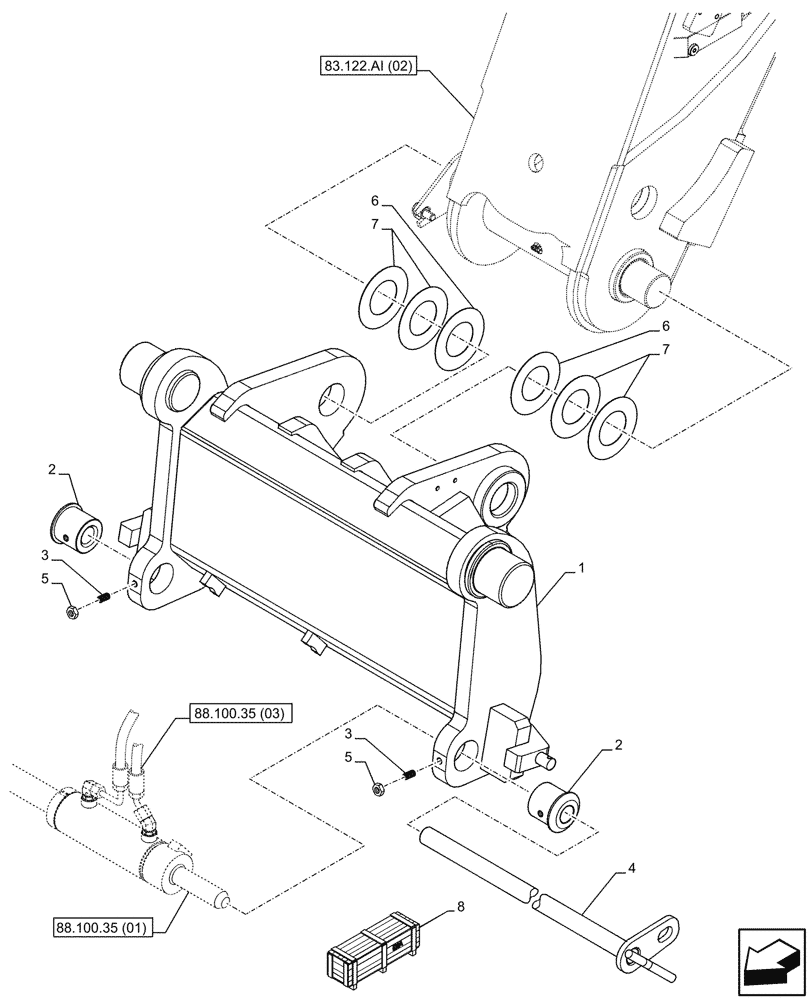

Схема запчастей Case IH FARMLIFT 735 - (88.100.89[01]) - CARRIER, FORK (88) - ACCESSORIES
83.122.ai (02)
1
7
88.100.35 (03)
3
4
2
8
5
2
6
88.100.35 (01)
3
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47952423

CARRIER

1шт.

2

47770249

BUSHING

2шт.

3

47688079

SCREW

2шт.

4

47672982

PIN

1шт.

5

8475948

NUT,M10 x 1.5, Cl 8

2шт.

6

47370197

SHIM

0.5mm Thk

2шт.

7

47370166

SHIM

1mm Thk

4шт.

8

47871050

CONSTRUCTION DIA

Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

8

47871054

CONSTRUCTION DIA

Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
