(88.100.35[06]) - QUICK COUPLER, LINES

Запчасти Case IH FARMLIFT 735 (88.100.35[06]) - QUICK COUPLER, LINES (88) - ACCESSORIES

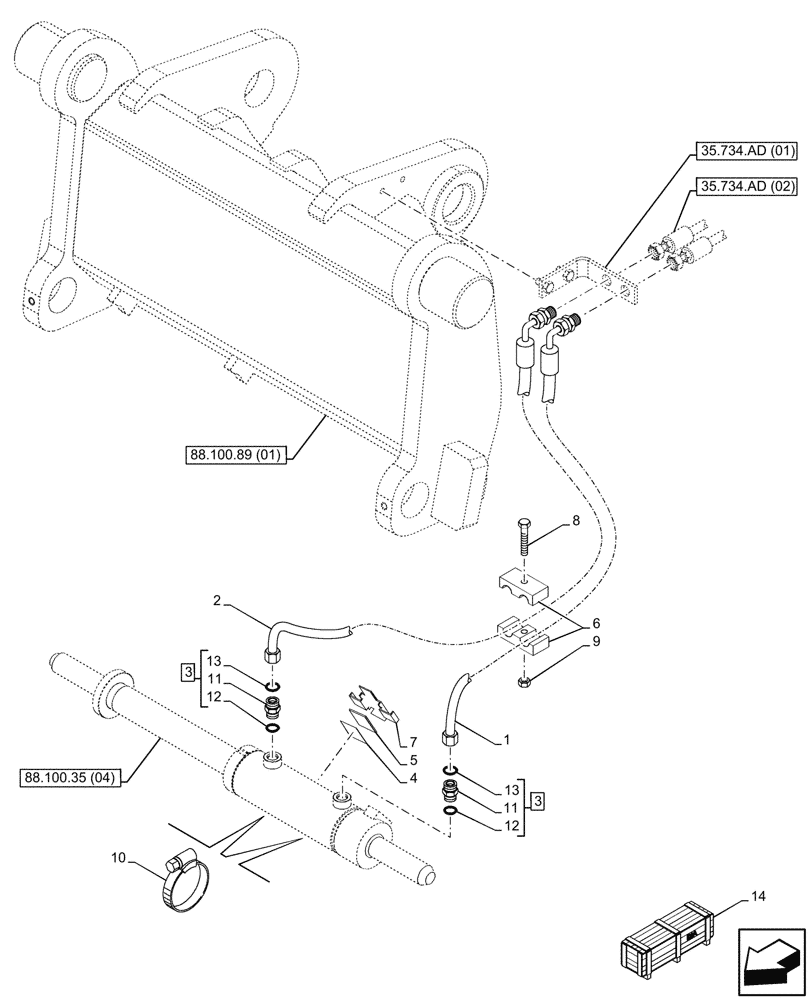

Схема запчастей Case IH FARMLIFT 735 - (88.100.35[06]) - QUICK COUPLER, LINES (88) - ACCESSORIES
10
5
1
3
11
13
88.100.89 (01)
13
3
88.100.35 (04)
35.734.ad (01)
6
2
12
12
8
4
35.734.ad (02)
7
11
14
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47913085

HYD TUBE

Carrier

1шт.

2

47913086

HYD TUBE

Carrier

1шт.

3

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 11 - 13 (Qty 1)

2шт.

4

47853822

SHIM

Thk 0.5mm

1шт.

5

47853820

SHIM

Thk 1mm

1шт.

6

47860254

CLAMP

2шт.

7

47853786

SUPPORT

1шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

9

68841

NUT,M8 x 1.25, Cl 8

1шт.

10

76086811

HOSE CLAMP,57mm - 79mm, Worm Clamp

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

47871055

DIA KIT, HARVESTER

Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
