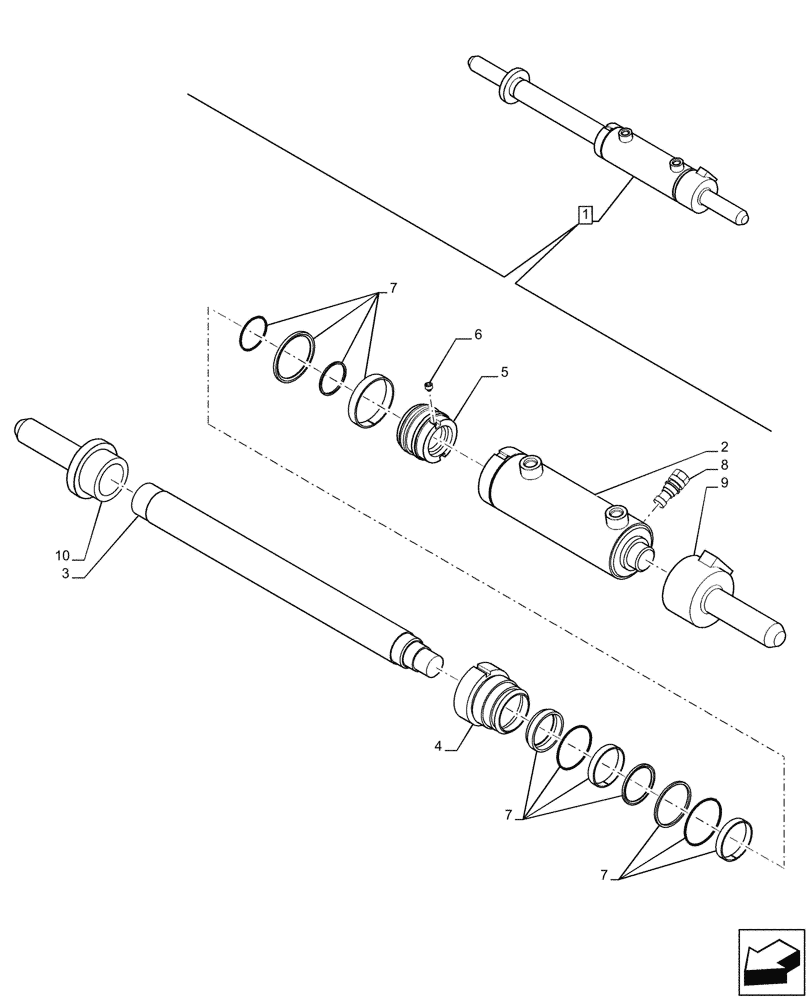

Запчасти Case IH FARMLIFT 735 (88.100.35[05]) - QUICK COUPLER, CYLINDER, COMPONENTS (88) - ACCESSORIES

1

47840307

HYDRAULIC CYLINDER

ASSY, Incl 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47858076

ROD

1шт.

4

47576673

GUIDE

1шт.

5

47576672

PISTON

1шт.

6

87568682

LOCK SCREW

1шт.

7

47576680

SEAL KIT

1шт.

8

87698367

VALVE

1шт.

9

47858081

EXTENSION

1шт.

10

47929496

EXTENSION

1шт.

11

47871055

DIA KIT, HARVESTER

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
