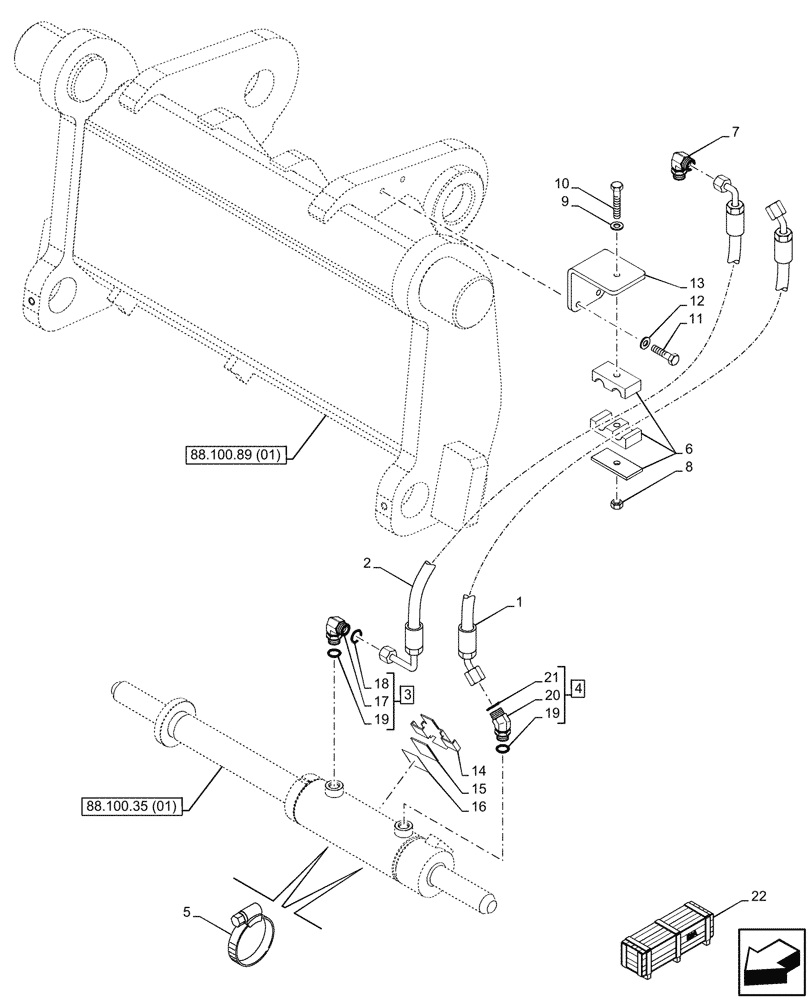

Запчасти Case IH FARMLIFT 735 (88.100.35[03]) - QUICK COUPLER, LINES (88) - ACCESSORIES

1

47798110

HYDRAULIC HOSE

Carrier

1шт.

2

47798091

HYDRAULIC HOSE

Carrier

1шт.

3

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 17 - 19 (Qty 1)

1шт.

4

84294335

FITTING

ASSY, Incl 19 (Qty 1) - 21

1шт.

5

76086811

HOSE CLAMP,57mm - 79mm, Worm Clamp

2шт.

6

76081933

CLAMP

1шт.

7

47538058

ELBOW

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

1шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

87023131

BOLT,Hex, M8 x 25mm, Cl 8.8, Full Thd

2шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

47813589

BRACKET

1шт.

14

47853786

SUPPORT

1шт.

15

47853822

SHIM

Thk 0.5mm

1шт.

16

47853820

SHIM

Thk 1mm

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

20

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

47871054

CONSTRUCTION DIA

Incl 1 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
