Запчасти Case IH FARMLIFT 735 (37.106.AG) - VAR - 749497 - AUTOMATIC HITCH, TIE-ROD, HANDLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

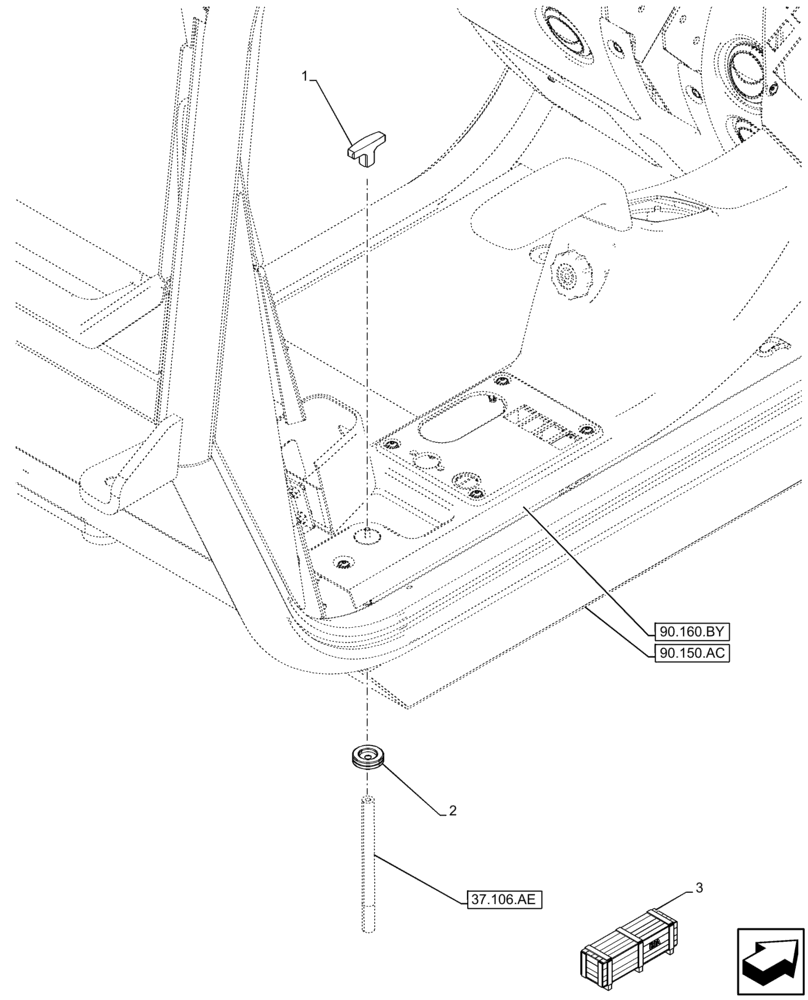

Схема запчастей Case IH FARMLIFT 735 - (37.106.AG) - VAR - 749497 - AUTOMATIC HITCH, TIE-ROD, HANDLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
90.160.by
90.150.ac
1
3
2
37.106.ae

Артикул

Название

Примечание

Количество

1

47421941

LOCKING HANDLE

Pick-up Hitch

1шт.

2

10397780

INSULATING RING

1шт.

3

47610677

CONSTRUCTION DIA

Pick up Hitch Rear Mirror, Incl 1 - 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 5
