Запчасти Case IH FARMLIFT 735 (37.106.AE) - VAR - 749497 - AUTOMATIC HITCH, TIE-ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

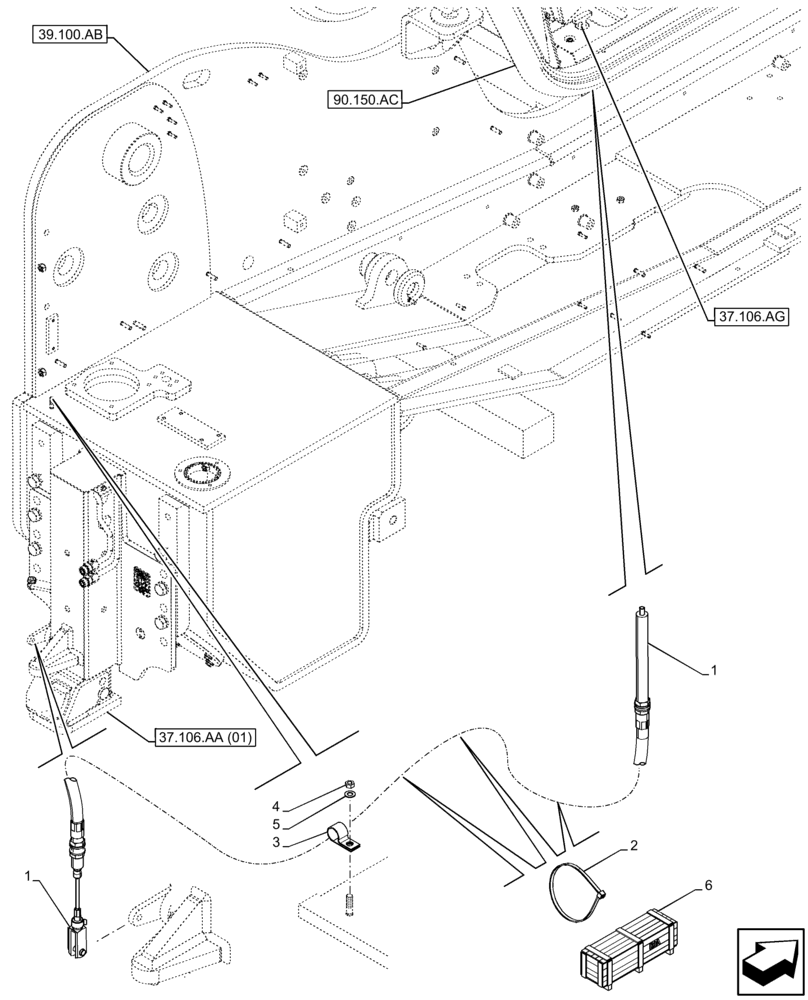

Схема запчастей Case IH FARMLIFT 735 - (37.106.AE) - VAR - 749497 - AUTOMATIC HITCH, TIE-ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
37.106.aa (01)
39.100.ab
90.150.ac
6
1
37.106.ag
2
1
4
3

Артикул

Название

Примечание

Количество

1

47646609

CABLE

1шт.

2

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

3

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

6

47610677

CONSTRUCTION DIA

Pick up Hitch Rear Mirror, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 8
