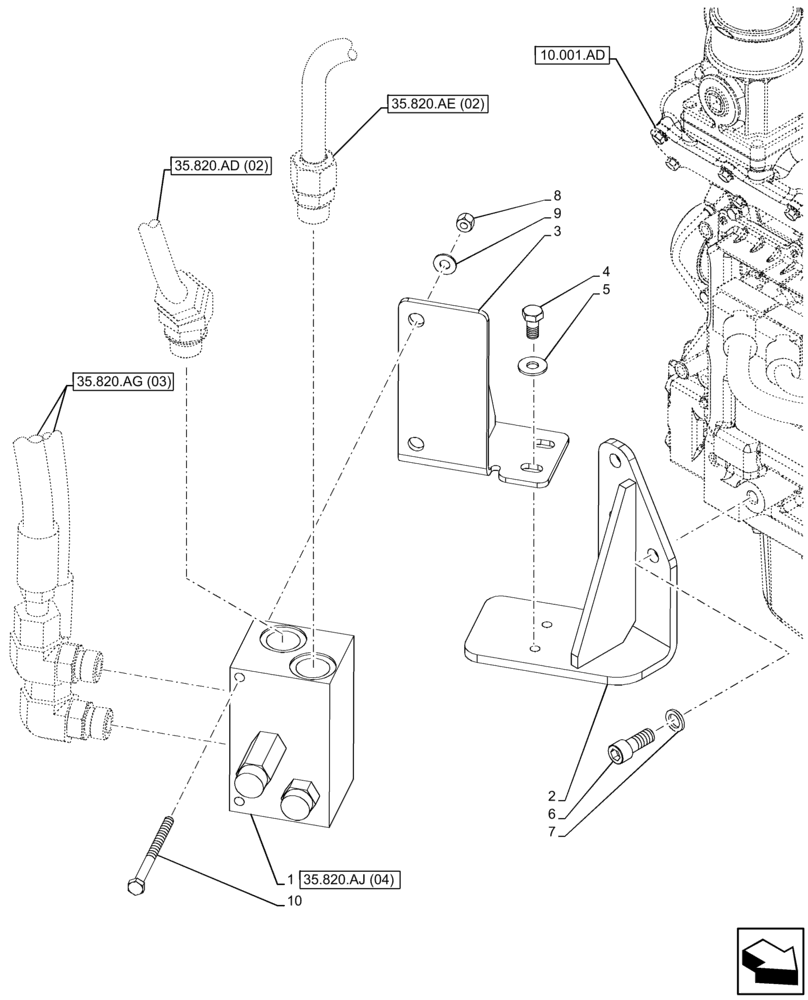

Запчасти Case IH FARMLIFT 735 (35.820.AJ[03]) - VAR - 702006 - FAN, RADIATOR, VALVE (35) - HYDRAULIC SYSTEMS

1

47560811

VALVE

ASSY

1шт.

2

47465191

BRACKET

1шт.

3

47465176

BRACKET

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

6

14422031

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

7

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

3шт.

8

412250

NUT,M8 x 1.25, Cl 8

2шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

16046131

SCREW,Hex, M8 x 100mm, Cl 10.9

2шт.
