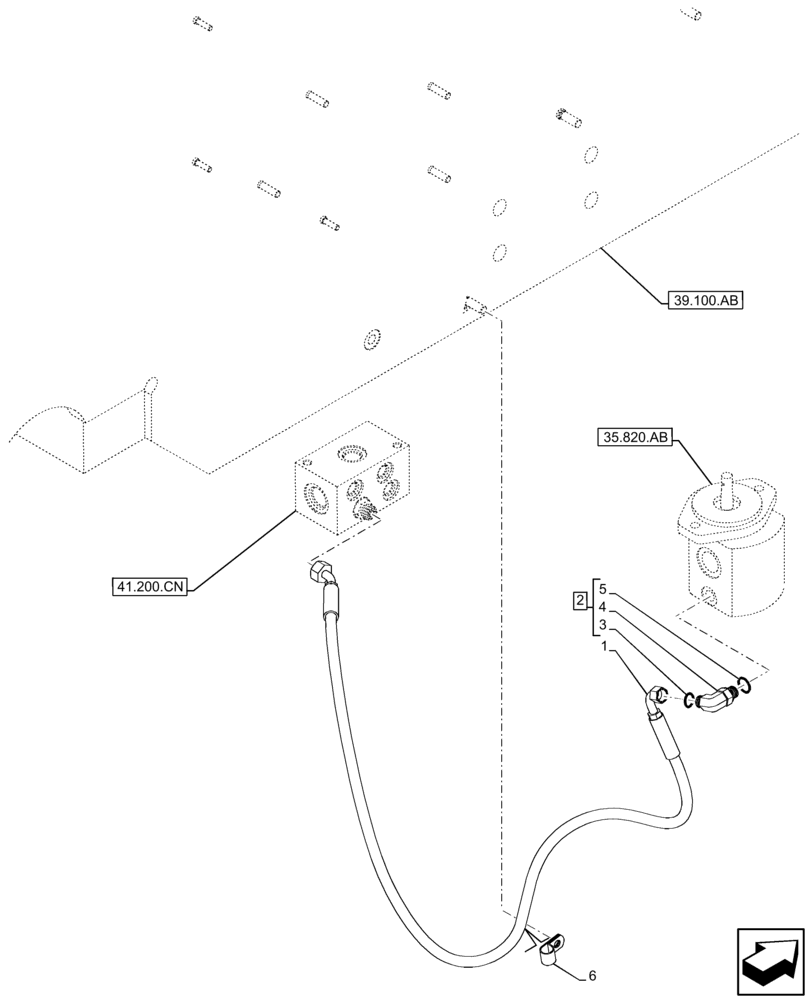

Запчасти Case IH FARMLIFT 735 (35.820.AG[01]) - VAR - 702006, 749249 - FAN, RADIATOR, HYDRAULIC LINE, MOTOR, RETURN (35) - HYDRAULIC SYSTEMS

1

84570216

HYDRAULIC HOSE,6.35mm ID x 1450mm L, SAE 100R17

Motor Drain, Only for Var 749249

1шт.

1

47676111

HYDRAULIC HOSE

Motor Drain, Only for Var 702006

1шт.

2

84432241

90 ELBOW,90 Degree, 9/16"-18 ORFS x M14 x 1.5 ORB

ASSY, Incl 3 - 5, Only for Var 749249

1шт.

2

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 3 - 5, Only for Var 702006

1шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Only for Var 749249

1шт.

5

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Only for Var 702006

1шт.

6

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.
