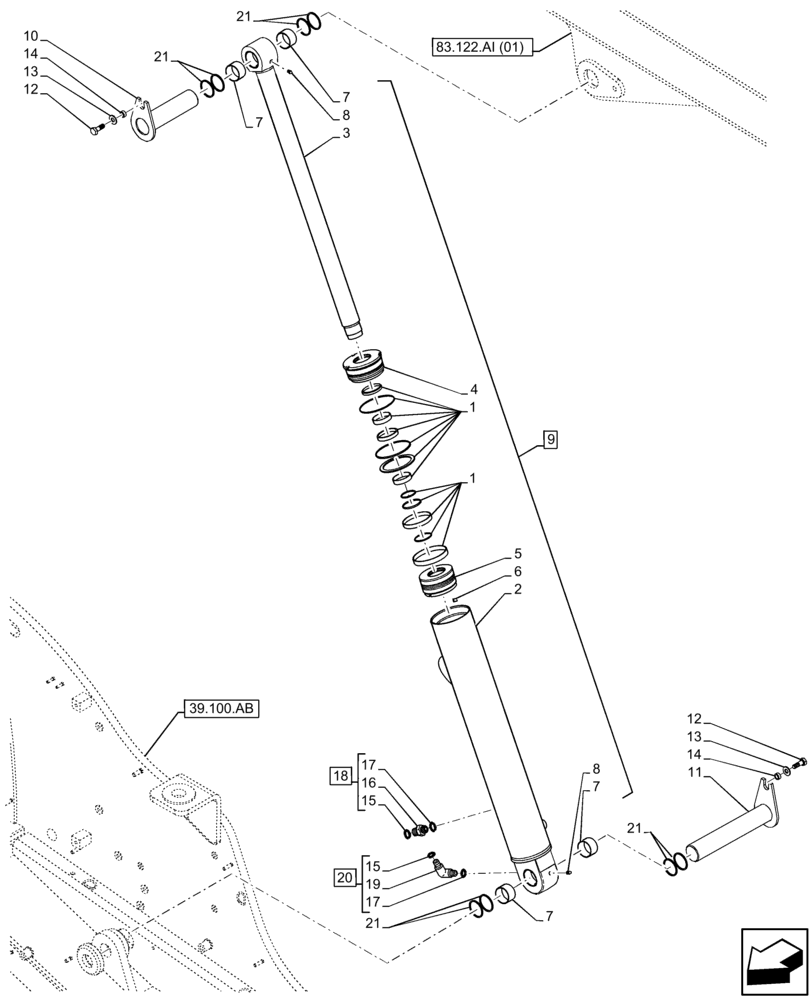

Запчасти Case IH FARMLIFT 735 (35.740.AI) - BOOM CYLINDER, COMPENSATOR (6 - 7M) (35) - HYDRAULIC SYSTEMS

1

47576216

SEAL KIT

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 9

1шт.

3

47576211

PISTON ROD

1шт.

4

47576209

GUIDE

1шт.

5

47576207

PISTON

1шт.

6

47576137

SCREW

1шт.

7

47576135

BUSHING

4шт.

8

87626869

LUBE NIPPLE

2шт.

9

84547701

HYDRAULIC CYLINDER

ASSY, Incl 1 - 8, Years: -10-APR-14

1шт.

9

47612114

HYDRAULIC CYLINDER

ASSY, Incl 1 - 8, Start Year: 11-APR-14

1шт.

10

47497352

PIN

Boom Side, Serial Range: -NFKB00501

1шт.

10

47875242

PIN

Boom Side, Start Serial: NFKB00502

1шт.

11

47497361

PIN

Frame Side

1шт.

12

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

13

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

14

47706213

SPACER

2шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

87672176

HYD CONNECTOR

ASSY, Incl 15 - 17

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

20

84390792

90 ELBOW

ASSY, Incl 15, 17, 19

1шт.

21

47476467

SHIM

8шт.
