Запчасти Case IH FARMLIFT 735 (35.734.AA[01]) - VAR - 749124 - QUICK COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS

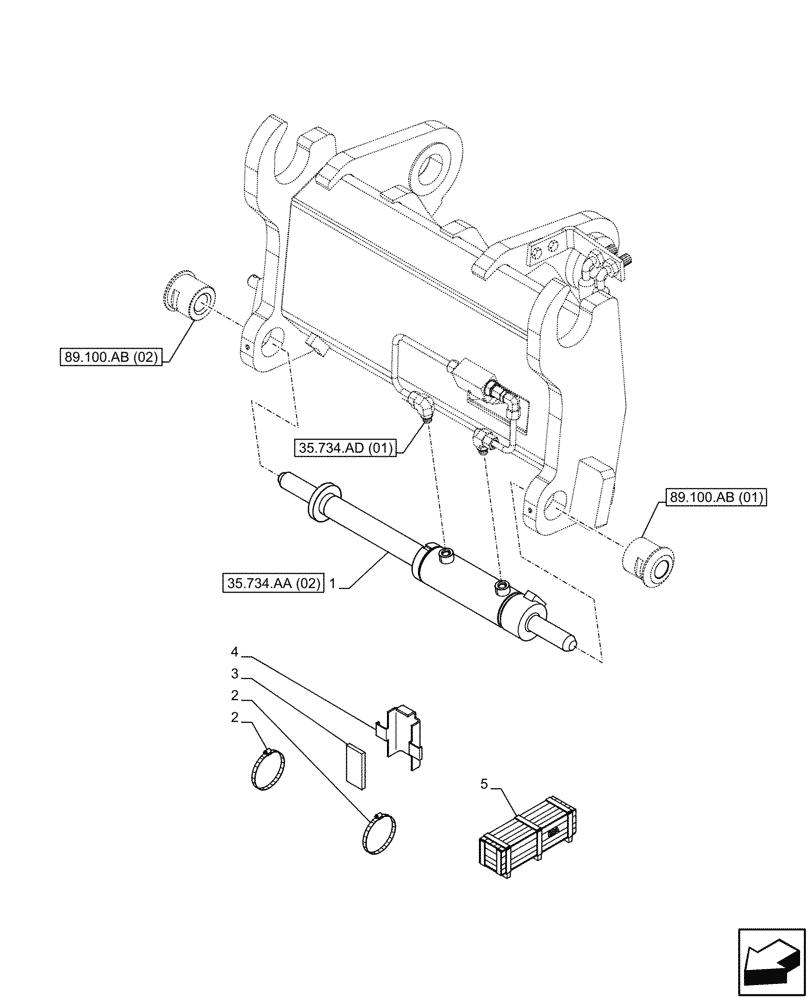

Схема запчастей Case IH FARMLIFT 735 - (35.734.AA[01]) - VAR - 749124 - QUICK COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS
35.734.ad (01)
2
5
3
89.100.ab (01)
89.100.ab (02)
4
1
2
35.734.aa (02)

Артикул

Название

Примечание

Количество

1

47544218

HYDRAULIC CYLINDER

ASSY, Years: -10-MAY-15

1шт.

1

47804252

HYDRAULIC CYLINDER

ASSY, Start Year: 11-MAY-15

1шт.

2

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

3

47718954

SHIM

Thk 1mm

1шт.

3

47718955

SHIM

Thk 0.5mm

1шт.

4

47717070

SUPPORT

1шт.

2

47610752

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 8
