Запчасти Case IH FARMLIFT 735 (35.525.AD[02]) - VAR - 749148, 749483, 749485 - QUICK COUPLER, VALVE, LINE (35) - HYDRAULIC SYSTEMS

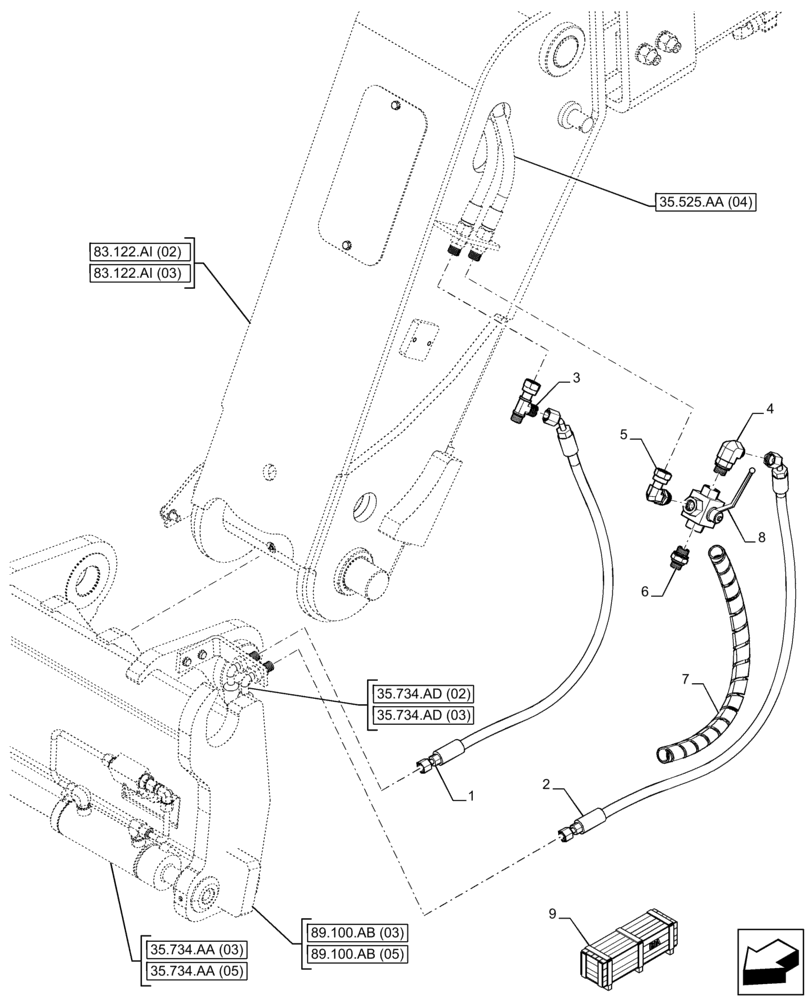

Схема запчастей Case IH FARMLIFT 735 - (35.525.AD[02]) - VAR - 749148, 749483, 749485 - QUICK COUPLER, VALVE, LINE (35) - HYDRAULIC SYSTEMS
89.100.ab (05)
9
35.734.ad (02)
35.734.aa (03)
35.525.aa (04)
8
35.734.ad (03)
35.734.aa (05)
83.122.ai (02)
1
89.100.ab (03)
4
6
7
5
3
2
83.122.ai (03)

Артикул

Название

Примечание

Количество

1

47407189

HOSE

Boom to Fork Carrier

1шт.

2

47407190

HOSE

Boom to Fork Carrier

1шт.

3

87739147

TEE,3/4"-16 M x 13/16"-16 M x 13/16"-16 F

1шт.

4

87725875

FITTING

1шт.

5

87739146

FITTING,1/2"-14 Gas x 13/16"-16

1шт.

6

87552188

FITTING

1шт.

7

71415875

FLEXIBLE SHEATH

1шт.

8

87734695

VANEUM GAUGE

Hand Lever

1шт.

9

47610756

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
