(35.359.AJ[07]) - CONTROL VALVE, SPOOL, OUTLET SECTION

Запчасти Case IH FARMLIFT 735 (35.359.AJ[07]) - CONTROL VALVE, SPOOL, OUTLET SECTION (35) - HYDRAULIC SYSTEMS

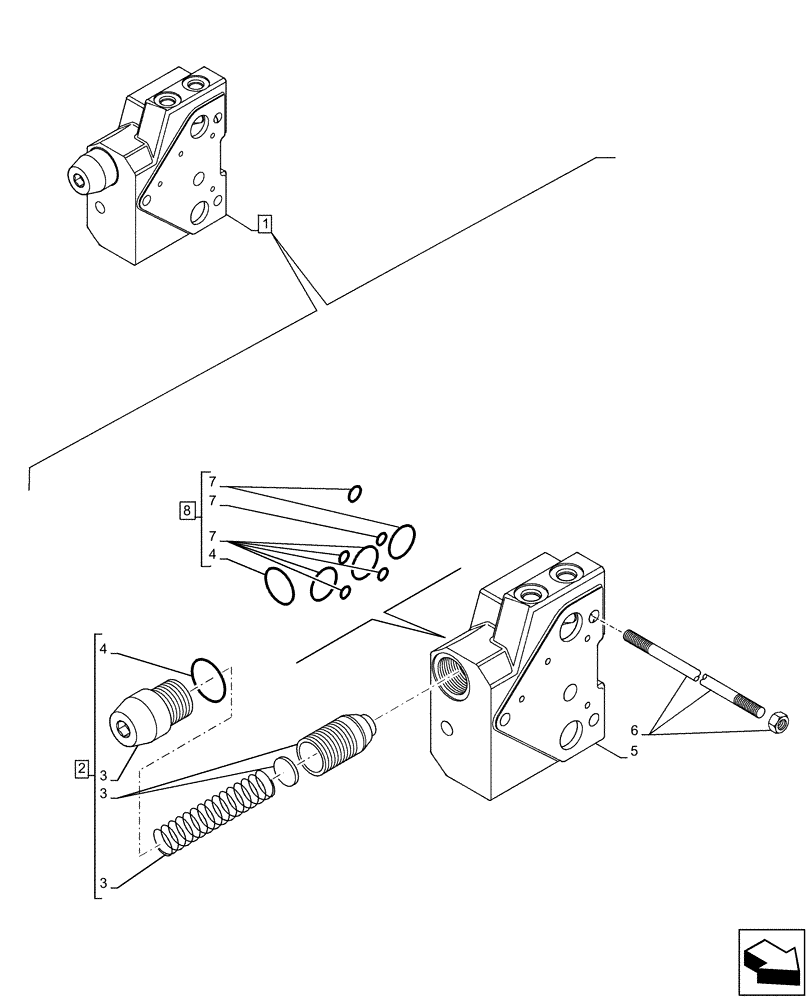

Схема запчастей Case IH FARMLIFT 735 - (35.359.AJ[07]) - CONTROL VALVE, SPOOL, OUTLET SECTION (35) - HYDRAULIC SYSTEMS
2
6
7
1
4
7
3
3
7
3
4
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47572248

CONTROL VALVE

ASSY, Incl 2 - 8

1шт.

2

85820129

KIT

ASSY, Incl 3, 4 (Q.ty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Regulation Valve, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 8

2шт.

5

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

6

47574898

STUD

3шт.

7

NSS

NOT SOLD SEPARAT

O-Ring Kit, Incl in 8

1шт.

8

47572263

SEAL KIT

ASSY, Incl 4 (Q.ty 1), 7

1шт.
