(35.106.AO[03A]) - VARIABLE DELIVERY HYDRAULIC PUMP, CONTROL VALVE LINE - BEGIN DATE 21-APR-2015

Запчасти Case IH FARMLIFT 735 (35.106.AO[03A]) - VARIABLE DELIVERY HYDRAULIC PUMP, CONTROL VALVE LINE - BEGIN DATE 21-APR-2015 (35) - HYDRAULIC SYSTEMS

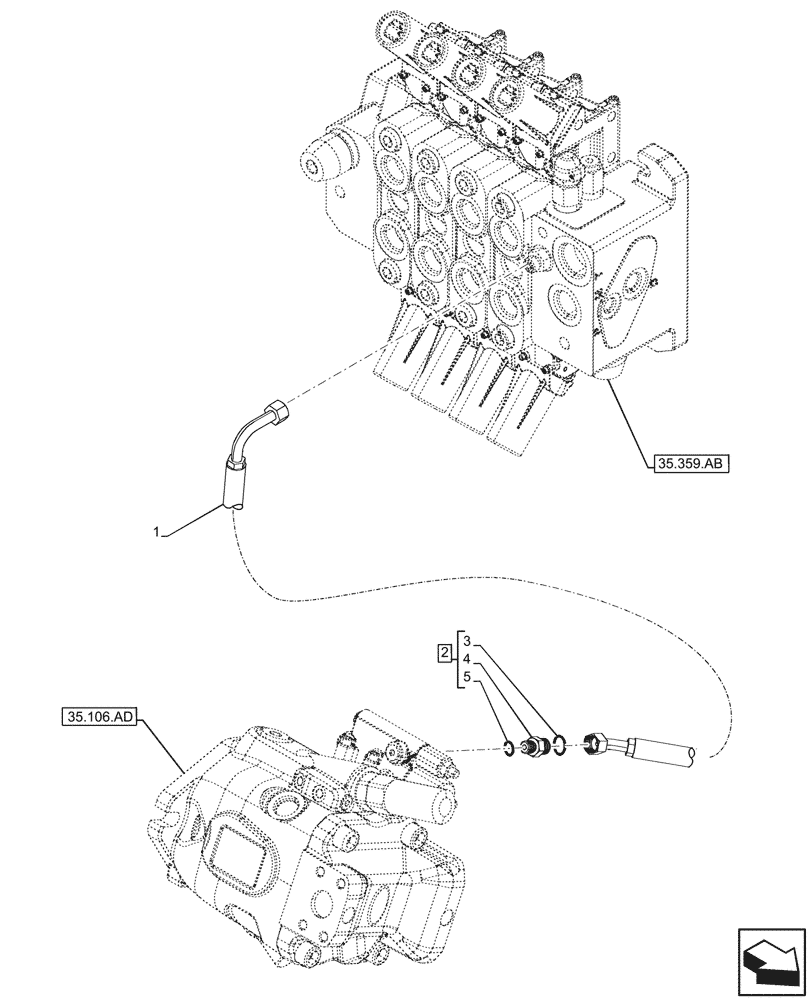

Схема запчастей Case IH FARMLIFT 735 - (35.106.AO[03A]) - VARIABLE DELIVERY HYDRAULIC PUMP, CONTROL VALVE LINE - BEGIN DATE 21-APR-2015 (35) - HYDRAULIC SYSTEMS
35.359.ab
1
2
3
4
5
35.106.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84586368

HOSE,6.35mm ID x 2650mm L, SAE 100R16

Directional Control Valve Port LS to Valve

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 3 - 5

1шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
