Запчасти Case IH FARMLIFT 735 (35.106.AO[01A]) - VARIABLE DELIVERY HYDRAULIC PUMP, CONTROL VALVE LINE - BEGIN DATE 21-APR-2015 (35) - HYDRAULIC SYSTEMS

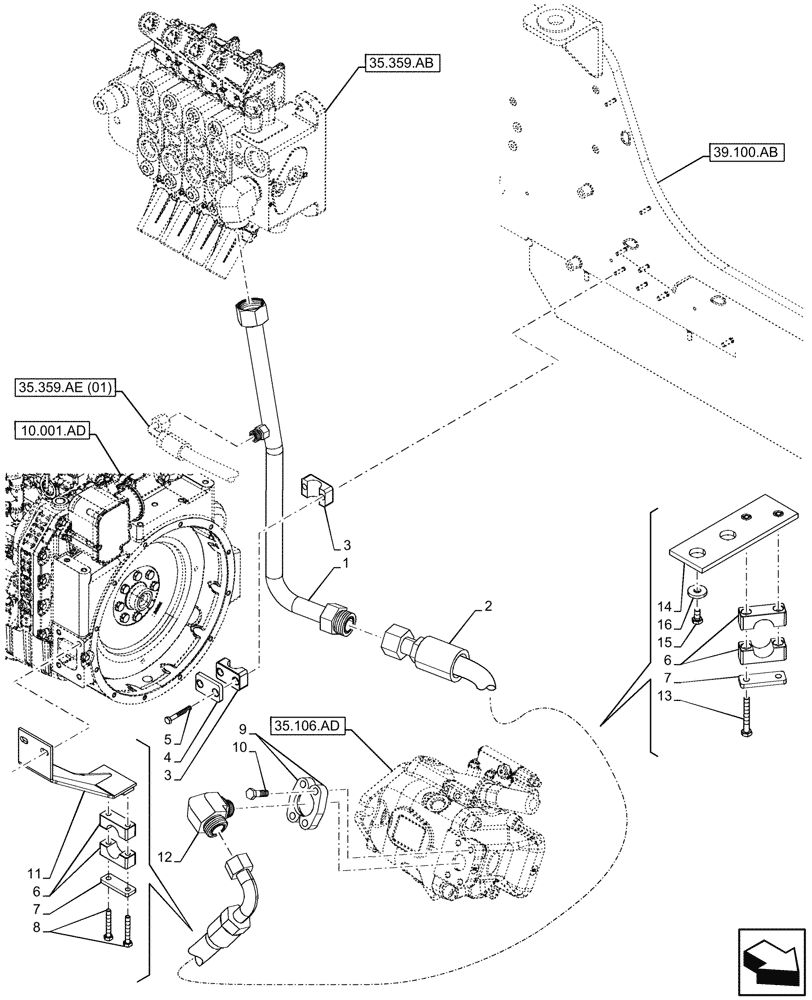

Схема запчастей Case IH FARMLIFT 735 - (35.106.AO[01A]) - VARIABLE DELIVERY HYDRAULIC PUMP, CONTROL VALVE LINE - BEGIN DATE 21-APR-2015 (35) - HYDRAULIC SYSTEMS
16
1
15
13
10
2
9
3
39.100.ab
7
3
6
35.359.ae (01)
10.001.ad
4
5
8
35.359.ab
11
6
12
35.106.ad
7
14

Артикул

Название

Примечание

Количество

1

84555845

HYD TUBE

Directional Control Valve Port P to Pump, Rear Section

1шт.

2

47731065

HYDRAULIC HOSE

Directional Control Valve to Pump, Front Section

1шт.

3

971661

CLIP

1шт.

4

598093

PLATE

1шт.

5

84068386

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

6

8468541

CLIP

2шт.

7

2781782

PLATE

2шт.

8

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

2шт.

9

8292188

CLAMP,Half

2шт.

10

70921076

SCREW,3/8"-16 x 1 1/4"

4шт.

11

47721730

BRACKET

1шт.

12

47446675

90 ELBOW

1шт.

13

11108031

BOLT,Hex, M10 x 90mm, Cl 10.9

2шт.

14

47721851

BRACKET

1шт.

15

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

16

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

Выбрано товаров: 16
