(35.106.AD[01A]) - VARIABLE DELIVERY HYDRAULIC PUMP - BEGIN DATE 21-APR-2015

Запчасти Case IH FARMLIFT 735 (35.106.AD[01A]) - VARIABLE DELIVERY HYDRAULIC PUMP - BEGIN DATE 21-APR-2015 (35) - HYDRAULIC SYSTEMS

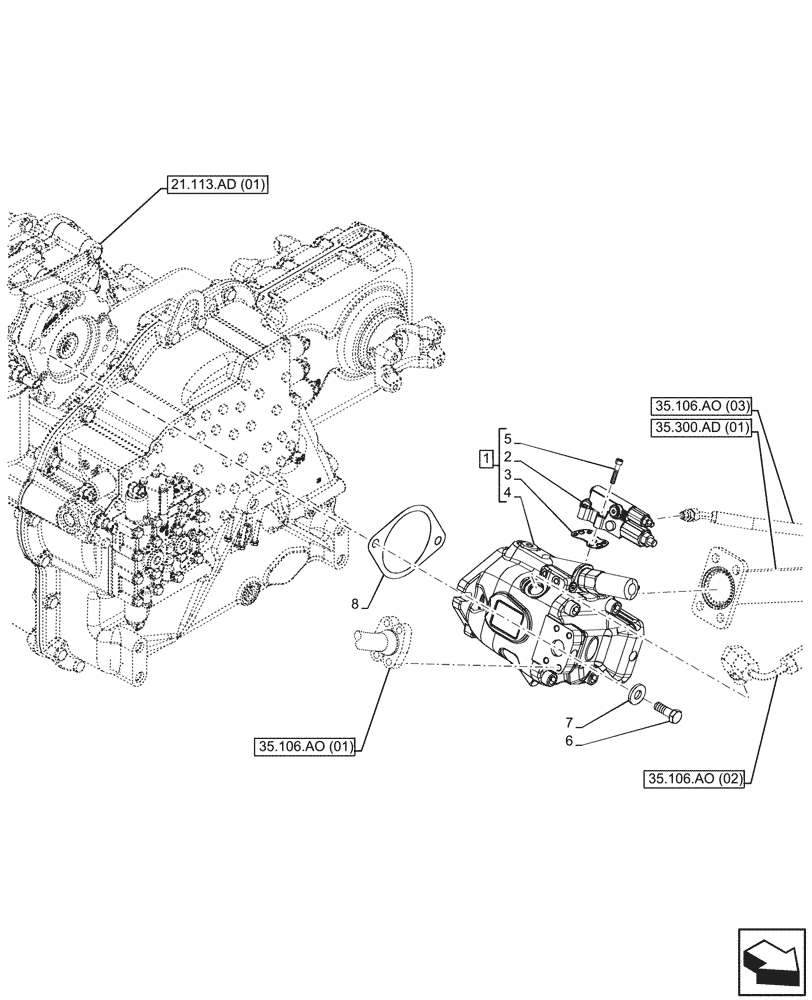

Схема запчастей Case IH FARMLIFT 735 - (35.106.AD[01A]) - VARIABLE DELIVERY HYDRAULIC PUMP - BEGIN DATE 21-APR-2015 (35) - HYDRAULIC SYSTEMS
35.106.ao (01)
5
7
1
6
3
8
2
4
35.300.ad (01)
35.106.ao (02)
35.106.ao (03)
21.113.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84558251

HYDRAULIC PUMP

ASSY, Incl 2 - 5

1шт.

2

47382814

CONTROL VALVE

1шт.

3

84209778

GASKET

1шт.

4

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

6

14309631

HEX SOC SCREW,M12 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

7

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

2шт.

8

76042413

GASKET,0.5mm Thk

1шт.
