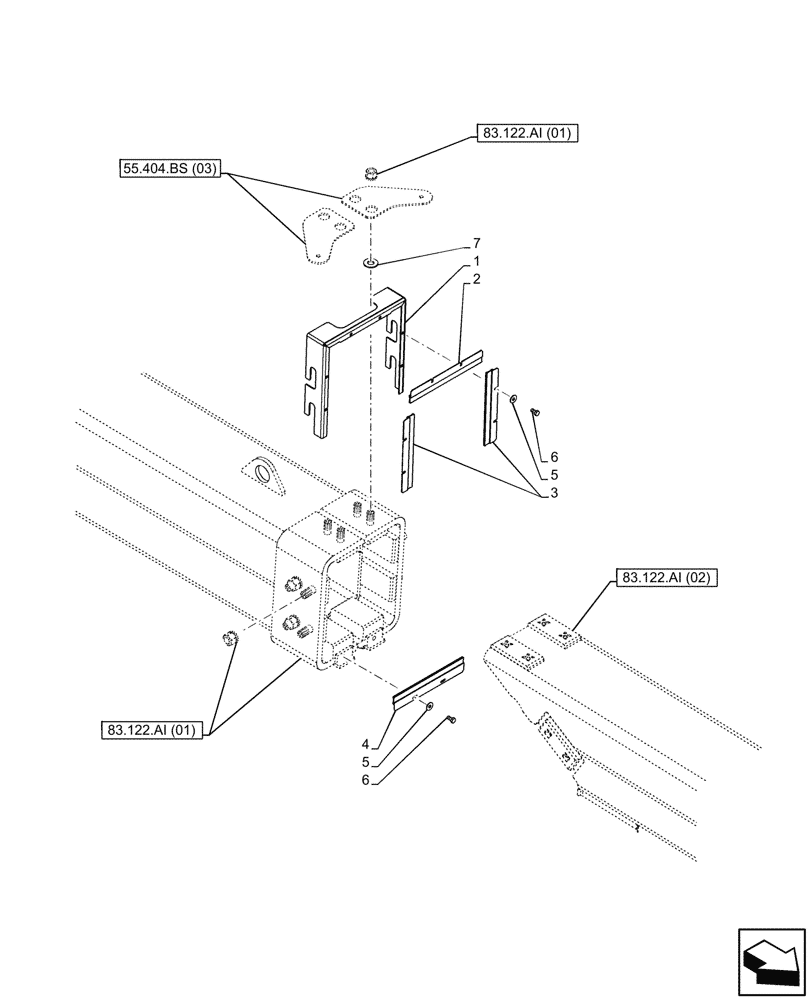

Запчасти Case IH FARMLIFT 635 (83.122.AI[05]) - VAR - 749734 - BOOM (6 - 7M), PROTECTION, DUST PLATE (83) - TELESCOPIC SINGLE ARM

1

47657603

BRUSH HOLDER

1шт.

2

47626685

BRUSH

Upper

1шт.

3

47626684

BRUSH

Side

2шт.

4

47626682

BRUSH

Lower

1шт.

5

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

8шт.

6

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

8шт.

7

10520431

WASHER,21mm ID x 35mm OD x 4mm Thk

4шт.

See Additional Light Supports in Figure 55.404.BS (03)

1шт.
