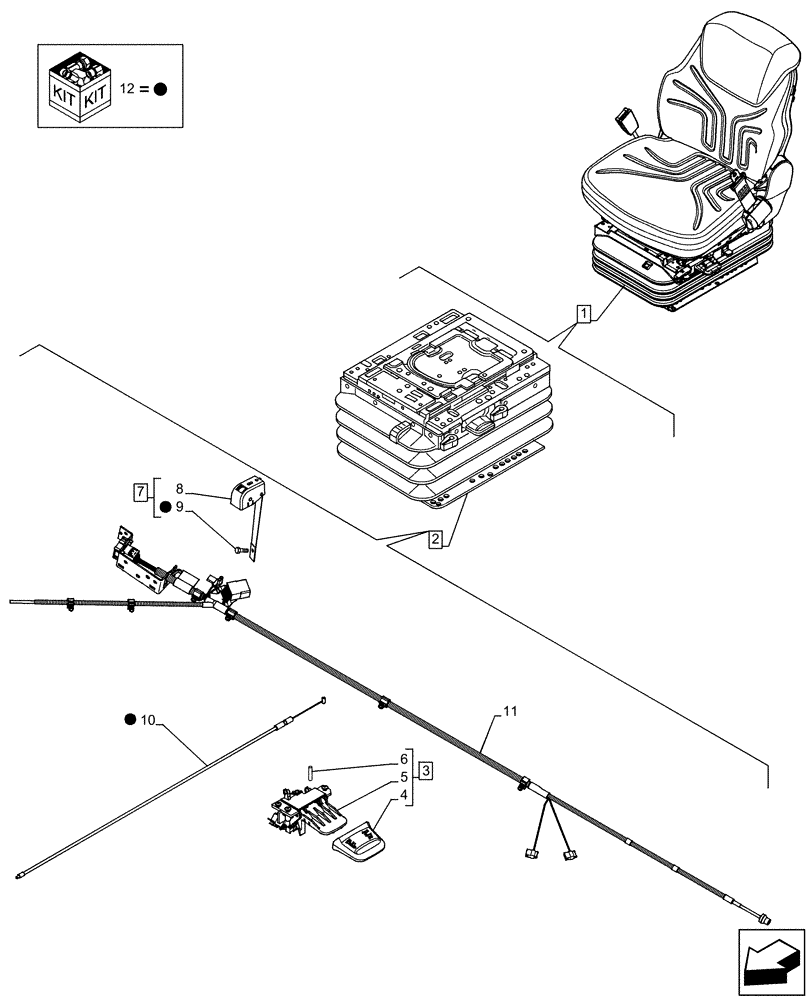

Запчасти Case IH FARMLIFT 635 (55.512.CQ) - VAR - 749490 - DRIVER SEAT, AIR COMPRESSOR, CONTROL (55) - ELECTRICAL SYSTEMS

1

47444280

DRIVER SEAT

ASSY, Incl 2 - 12

1шт.

See Seat Components also in Figures 55.408.BL (02), 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AL, 90.124.AM (01), 90.124.AM (02), 90.124.AN, 90.124.AP, 90.124.AR, 90.151.AD (02)

1шт.

2

47613384

SUSPENSION

ASSY, Incl 3 - 11

1шт.

3

345107A1

LEVER

ASSY, Incl 4 - 6

1шт.

4

84191000

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Handle Internal Parts, Incl in 3

1шт.

6

84191017

REPAIR KIT

Handle Mounting Parts

1шт.

7

47540039

LEVEL

Level Indicator, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Level Indicator, Incl in 7

1шт.

9

NSS

NOT SOLD SEPARAT

Mounting Parts, Incl in 7

1шт.

10

47614367

CABLE

1шт.

11

84190970

WIRE HARNESS

1шт.

12

84190975

REPAIR KIT

Wear Parts, Incl 9, 10

1шт.

See Wear Parts Kit Components also in Figures 90.124.AM (02), 90.124.AN, 90.124.AP, 90.124.AR

1шт.
