(55.408.BL[01]) - VAR - 749491 - DRIVER SEAT, OPERATOR PRESENCE, SENSOR

Запчасти Case IH FARMLIFT 635 (55.408.BL[01]) - VAR - 749491 - DRIVER SEAT, OPERATOR PRESENCE, SENSOR (55) - ELECTRICAL SYSTEMS

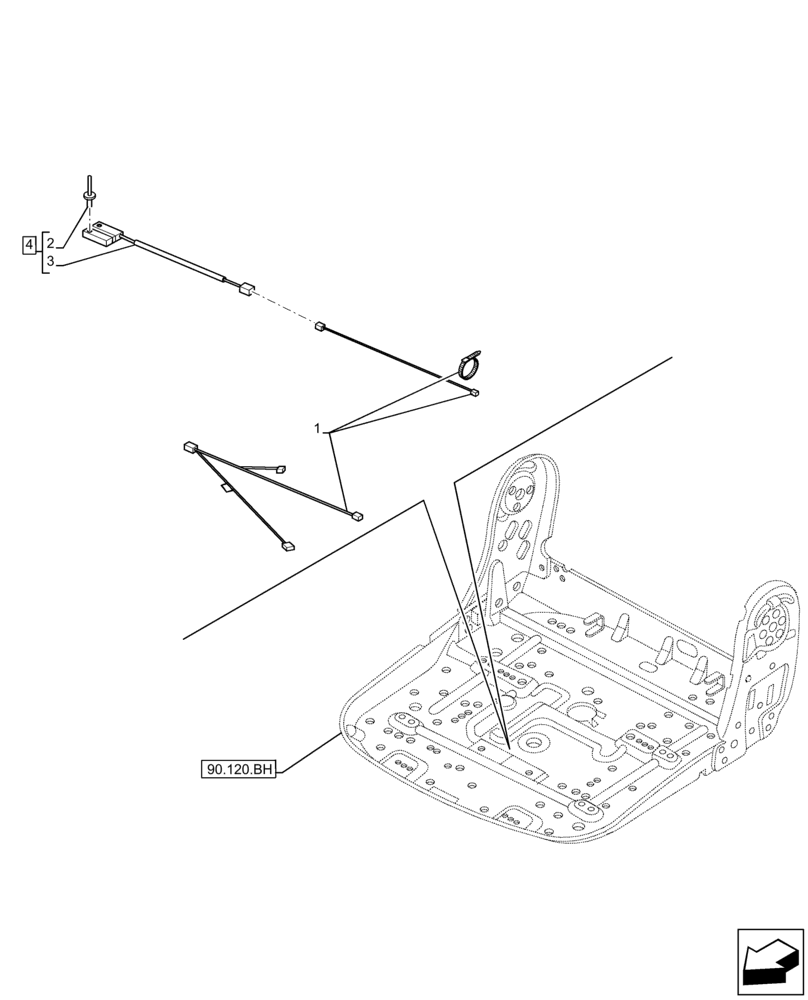

Схема запчастей Case IH FARMLIFT 635 - (55.408.BL[01]) - VAR - 749491 - DRIVER SEAT, OPERATOR PRESENCE, SENSOR (55) - ELECTRICAL SYSTEMS
4
90.120.bh
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613466

WIRE HARNESS

Driver Seat Sensor

1шт.

2

84191201

SET OF PARTS

Switch Mounting Parts

1шт.

3

NSS

NOT SOLD SEPARAT

Switch, Incl in 4

1шт.

4

84525783

SWITCH

ASSY, Incl 2, 3

1шт.

Выбрано товаров: 4
