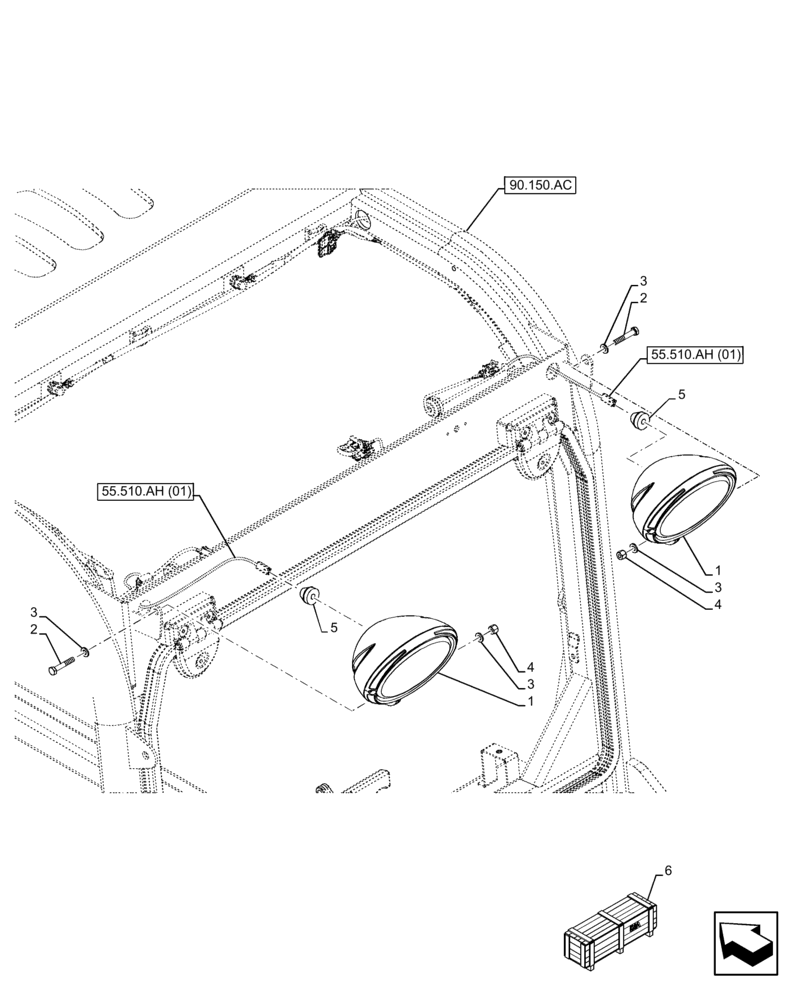

Запчасти Case IH FARMLIFT 635 (55.404.BS[02]) - VAR - 749274 - WORKING LIGHT, CAB, REAR (55) - ELECTRICAL SYSTEMS

1

87630899

LIGHT

Working, Cab, Rear

2шт.

2

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

4

12574221

NUT,M6 x 1, Cl 10

2шт.

5

47605659

PLUG

2шт.

6

47610532

CONSTRUCTION DIA

Two Rear Work Lights, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
