Запчасти Case IH FARMLIFT 635 (55.101.AC[02]) - WIRE HARNESS, FRAME, FRONT (55) - ELECTRICAL SYSTEMS

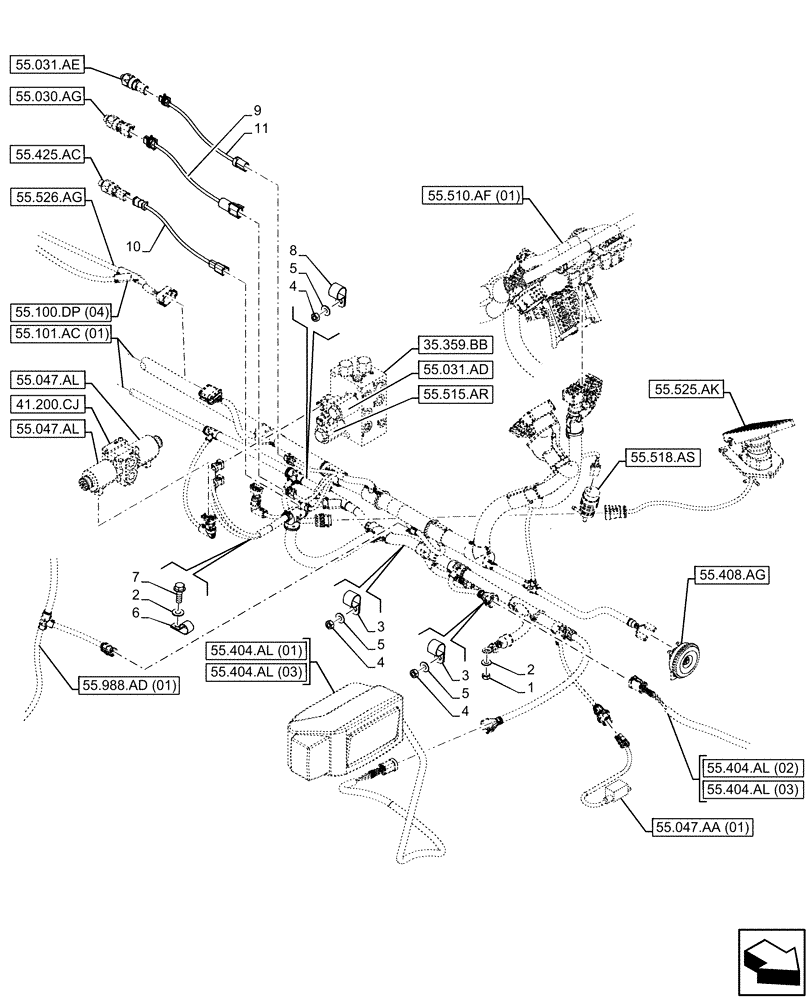

Схема запчастей Case IH FARMLIFT 635 - (55.101.AC[02]) - WIRE HARNESS, FRAME, FRONT (55) - ELECTRICAL SYSTEMS
55.101.ac (01)
7
5
5
4
9
5
2
11
3
6
4
2
10
3
4
1
8
55.031.ad
55.047.aa (01)
55.526.ag
55.515.ar
55.408.ag
55.518.as
55.100.dp (04)
55.510.af (01)
41.200.cj
55.525.ak
55.030.ag
55.988.ad (01)
35.359.bb
55.404.al (03)
55.404.al (03)
55.425.ac
55.404.al (02)
55.404.al (01)
55.047.al
55.047.al
55.031.ae

Артикул

Название

Примечание

Количество

1

86500689

NUT,M10 x 1.5, Cl 10

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

3

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

16102211

NUT,M8, Cl 10

3шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

6

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

8

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

47648159

WIRE HARNESS

From Chassis Main Harness to Brake Low Pressure switch

1шт.

10

47648163

WIRE HARNESS

From Chassis Main Harness to Cut-off Boom/Tilt switch

1шт.

11

47648165

WIRE HARNESS

From Chassis Main Harness to Park Brake Pressure switch

1шт.

Выбрано товаров: 11
