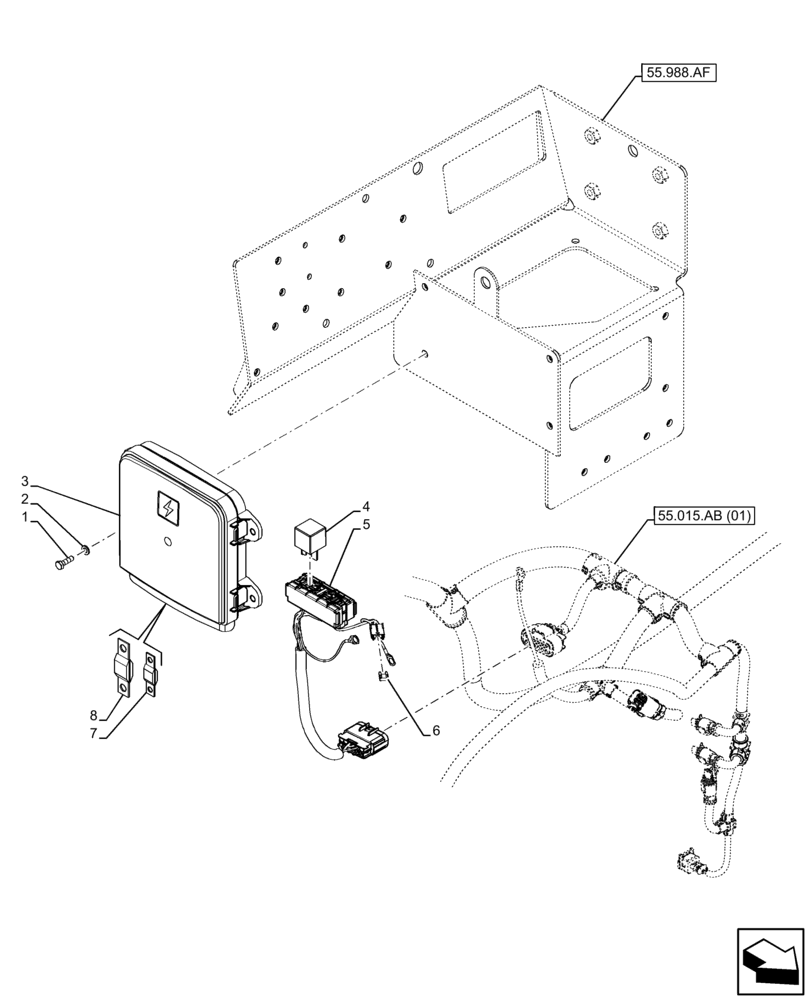

Запчасти Case IH FARMLIFT 635 (55.100.DO[01]) - RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS

1

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

3

84324816

FUSE BOX

1шт.

4

82030798

RELAY,12V, 70A

70A, Standard

1шт.

4

87341930

RELAY,Mini ISO, 12V, 70A

70A, Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when P/N 82030798 is not Available

1шт.

5

84566954

WIRE HARNESS

Fuse Box to Cab Main Harness

1шт.

6

121410A1

FUSE,5A, Mini, Tan

1шт.

7

84174069

FUSE,250A

60A

2шт.

8

87455597

FUSE,200A

1шт.
