(55.036.AO[03]) - CONTROL VALVE, TELESCOPIC SECTION, SOLENOID, UPPER

Запчасти Case IH FARMLIFT 635 (55.036.AO[03]) - CONTROL VALVE, TELESCOPIC SECTION, SOLENOID, UPPER (55) - ELECTRICAL SYSTEMS

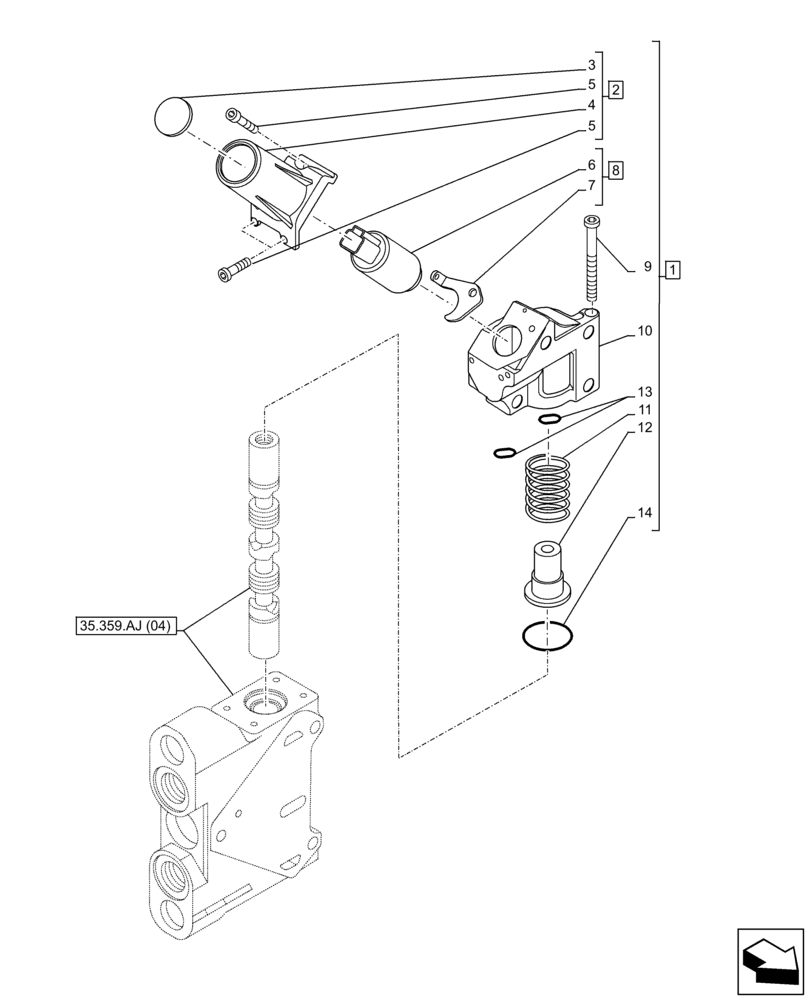

Схема запчастей Case IH FARMLIFT 635 - (55.036.AO[03]) - CONTROL VALVE, TELESCOPIC SECTION, SOLENOID, UPPER (55) - ELECTRICAL SYSTEMS
5
11
3
2
5
10
1
7
6
35.359.aj (04)
12
4
9
13
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47571322

SOLENOID

Control Valve, Telescopic Section, Upper, ASSY, Incl 2 - 14

1шт.

2

47571344

VALVE COVER

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 2

3шт.

6

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 8

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 8

1шт.

8

47571316

SOLENOID

ASSY, Incl 6, 7

1шт.

9

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Interface, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.
