(55.036.AO[01]) - CONTROL VALVE, AUXILIARY SECTION, SOLENOID

Запчасти Case IH FARMLIFT 635 (55.036.AO[01]) - CONTROL VALVE, AUXILIARY SECTION, SOLENOID (55) - ELECTRICAL SYSTEMS

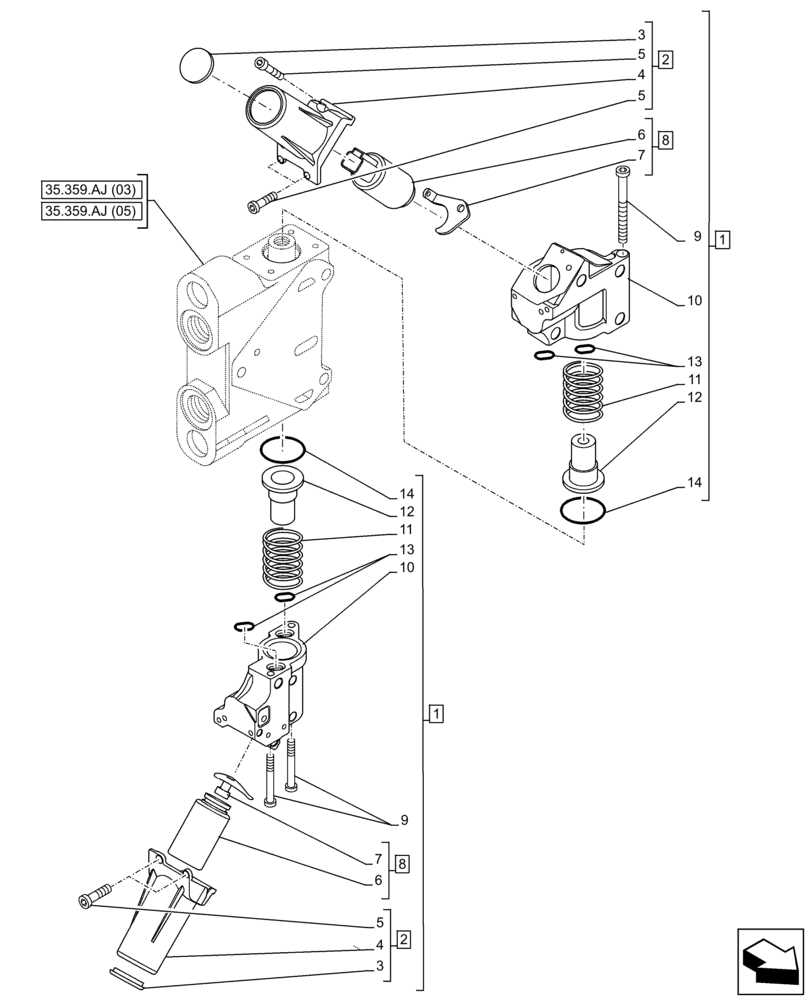

Схема запчастей Case IH FARMLIFT 635 - (55.036.AO[01]) - CONTROL VALVE, AUXILIARY SECTION, SOLENOID (55) - ELECTRICAL SYSTEMS
2
5
10
11
8
4
13
14
14
7
8
9
35.359.aj (03)
10
9
5
13
2
3
5
12
4
35.359.aj (05)
3
7
12
1
6
11
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47571322

SOLENOID

Control Valve Solenoid, Auxiliary Section, ASSY, Incl 2 - 14

2шт.

2

47571344

VALVE COVER

ASSY, Incl 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

2шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 2

6шт.

6

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 8

2шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 8

2шт.

8

47571316

SOLENOID

ASSY, Incl 6, 7

2шт.

9

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

10

NSS

NOT SOLD SEPARAT

Interface, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.
