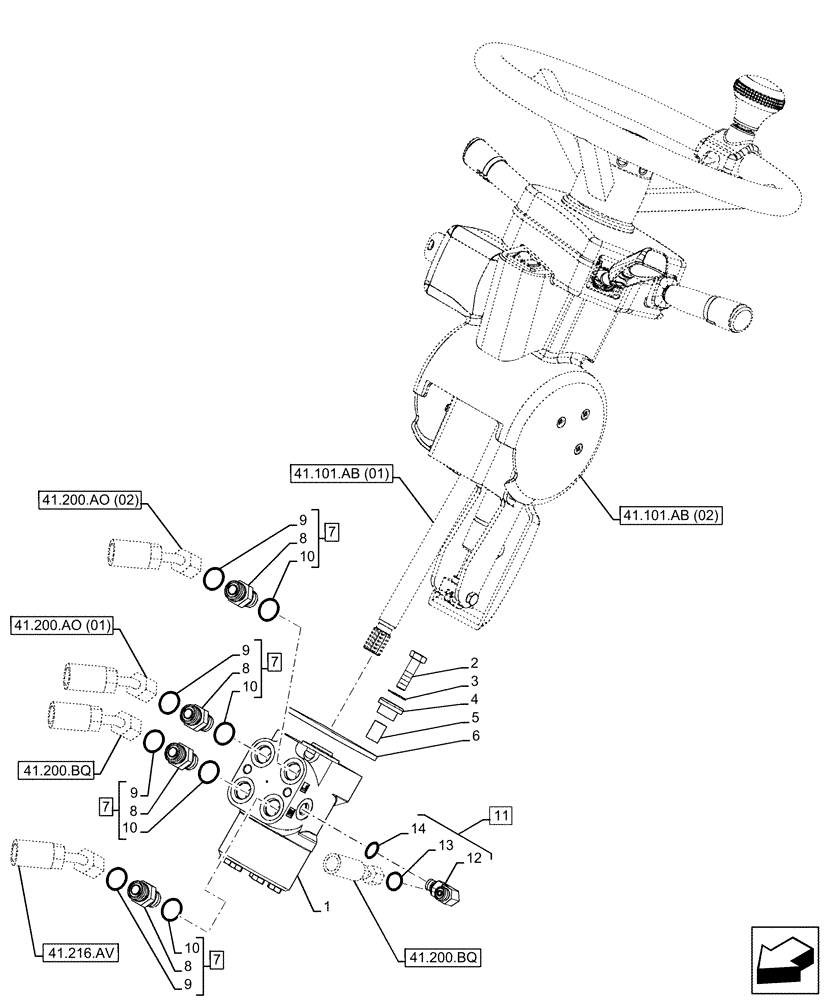

Запчасти Case IH FARMLIFT 635 (41.200.CH) - STEERING, PILOT VALVE (41) - STEERING

1

87516383

HYDRAULIC STEERING

1шт.

2

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

3

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

4шт.

5

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

6

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

7

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 8 - 10

4шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

4шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

11

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
