(41.101.AB[01]) - STEERING COLUMN

Запчасти Case IH FARMLIFT 635 (41.101.AB[01]) - STEERING COLUMN (41) - STEERING

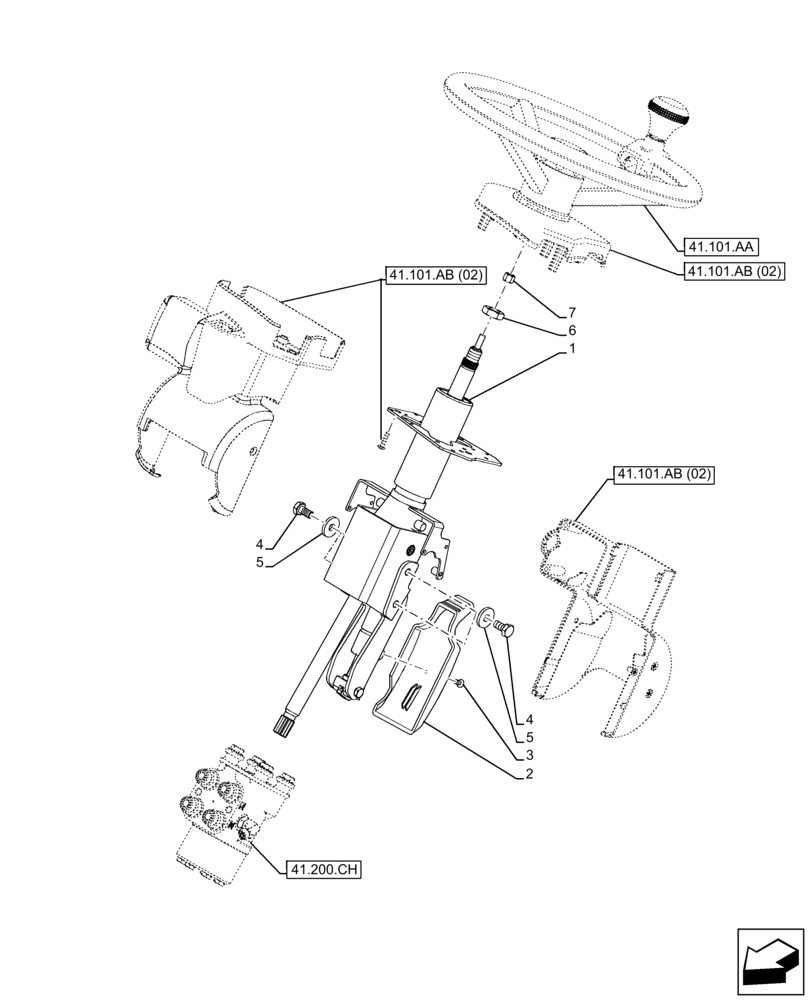

Схема запчастей Case IH FARMLIFT 635 - (41.101.AB[01]) - STEERING COLUMN (41) - STEERING
41.200.ch
41.101.aa
5
3
2
41.101.ab (02)
41.101.ab (02)
4
41.101.ab (02)
6
1
4
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84580466

STEERING COLUMN

1шт.

2

82036958

HANDLE

1шт.

3

13301111

SCREW,Pozidriv Flat Hd, Csk, M6 x 12mm, Cl 5.8

1шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

5

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

6

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

7

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.
