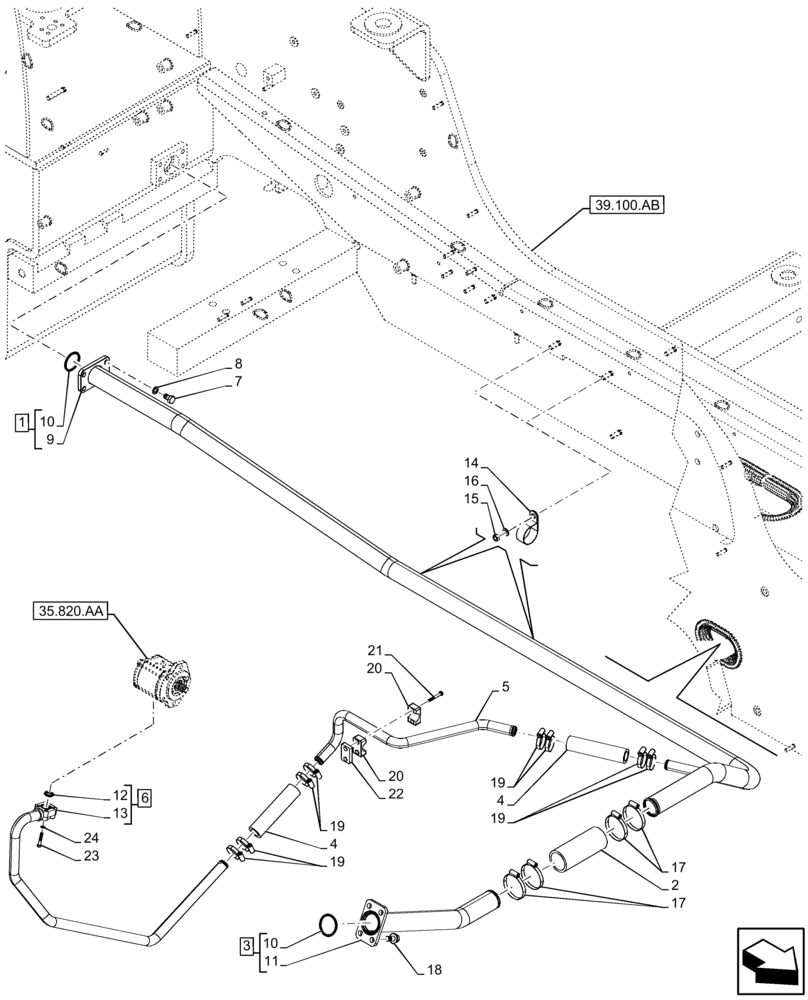

Запчасти Case IH FARMLIFT 635 (35.300.AD[01]) - HYDRAULIC OIL RESERVOIR, SUCTION PIPE - END DATE 20-APR-2015 (35) - HYDRAULIC SYSTEMS

1

47624068

HYD TUBE

Suction Line from Tank, ASSY, Incl 9, 10

1шт.

2

87756253

HOSE,50.00 mm ID x 150 mm

1шт.

3

47624067

HYD TUBE

Suction Line to Pump, ASSY, Incl 10, 11

1шт.

4

84558761

SLEEVE

2шт.

5

47628667

HYD TUBE

Hydraulic Fan Pump Suction Line

1шт.

6

47624066

HYD TUBE

Hydraulic Fan Pump Suction Line, ASSY, Incl 12, 13

1шт.

7

11109231

BOLT,Hex, M12 x 22mm, Cl 8.8, Full Thd

4шт.

8

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

9

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

10

14464680

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

Tube, Incl in 3

1шт.

12

71484894

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

14

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

15

86500689

NUT,M10 x 1.5, Cl 10

2шт.

16

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

17

13000990

COLLAR,60mm - 80mm, Worm Gear

4шт.

18

70923494

SCREW

4шт.

19

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

8шт.

20

971661

CLIP

1шт.

21

84068386

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

22

598093

PLATE

1шт.

23

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

4шт.

24

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.
