Запчасти Case IH FARMLIFT 635 (27.106.AA) - VAR - 749492 - REAR AXLE, BEVEL GEAR (LSD) (27) - REAR AXLE SYSTEM

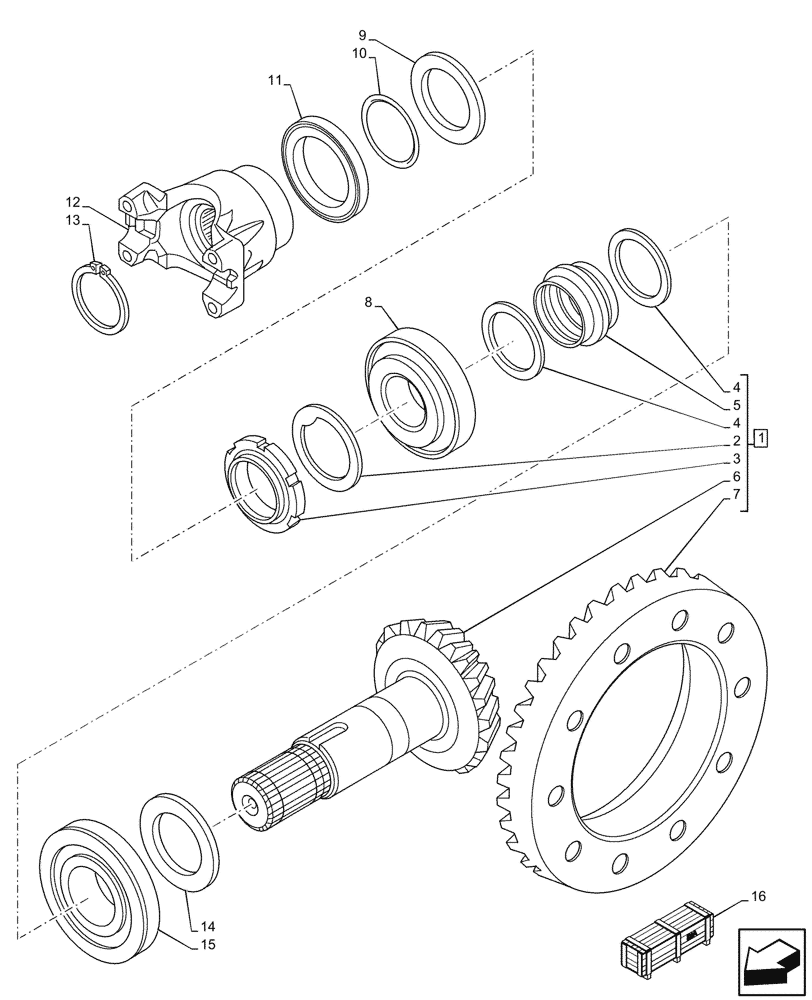

Схема запчастей Case IH FARMLIFT 635 - (27.106.AA) - VAR - 749492 - REAR AXLE, BEVEL GEAR (LSD) (27) - REAR AXLE SYSTEM
7
6
1
11
16
4
9
10
14
4
5
3
2
13
15
8
12

Артикул

Название

Примечание

Количество

1

47488188

BEVEL GEAR

ASSY, Incl 2 - 7, Years: -08-MAY-16

1шт.

1

47968622

BEVEL GEAR

ASSY, Incl 2 - 7, Start Year: 09-MAY-16

1шт.

2

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

3

6914529

NUT

1шт.

4

6914527

WASHER

2шт.

5

175957A1

SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

1шт.

9

81871C1

WASHER

1шт.

10

47546784

O-RING

1шт.

11

47488203

SEALING RING

1шт.

12

47488205

FLANGE

1шт.

13

6914466

SNAP RING

1шт.

14

47963161

SHIM

1шт.

14

190506A1

SHIM,2.5mm Thk

2.5mm Thk

1шт.

14

190508A1

SHIM,2.6mm Thk

2.6mm Thk

1шт.

14

190509A1

SHIM,2.7mm Thk

2.7mm Thk

1шт.

14

190510A1

SHIM,2.8mm Thk

2.8mm Thk

1шт.

14

190511A1

SHIM,2.9mm Thk

2.9mm Thk

1шт.

14

190512A1

SHIM,3.0mm Thk

3.0mm Thk

1шт.

14

190513A1

SHIM,3.1mm Thk

3.1mm Thk

1шт.

14

190514A1

SHIM,3.2mm Thk

3.2mm Thk

1шт.

14

190515A1

SHIM,3.3mm Thk

3.3mm Thk

1шт.

14

190516A1

SHIM,3.4mm Thk

3.4mm Thk

1шт.

15

47546793

NEEDLE BEARING

1шт.

16

47976139

CONSTRUCTION DIA

Incl 1 - 7, 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, LM7.35 DA, FARMLIFT 735, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM7.35 NRC, LM9.35 NRC

1шт.
