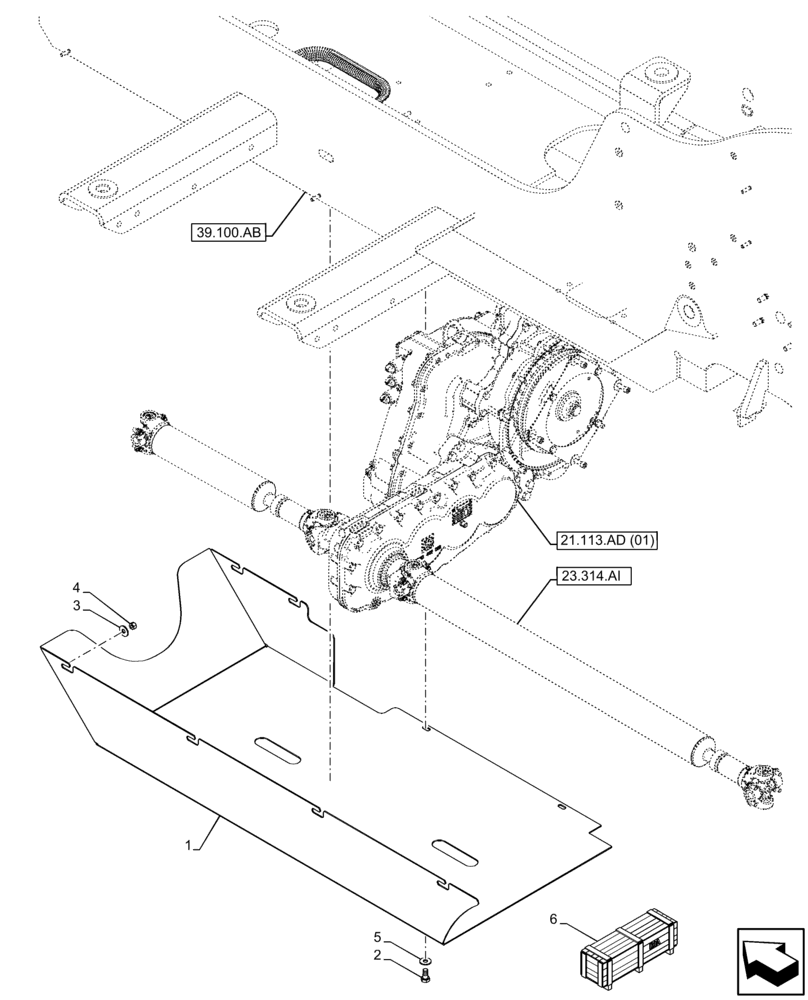

Запчасти Case IH FARMLIFT 635 (23.314.AH[02]) - VAR - 749271 - DRIVE SHAFT, FRONT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM

1

47388772

COVER

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

3

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

6шт.

4

68841

NUT,M8 x 1.25, Cl 8

6шт.

5

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.

6

47610759

CONSTRUCTION DIA

Driveshaft Protection Guard, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
