(21.113.AD[01]) - TRANSMISSION, POWERSHIFT

Запчасти Case IH FARMLIFT 635 (21.113.AD[01]) - TRANSMISSION, POWERSHIFT (21) - TRANSMISSION

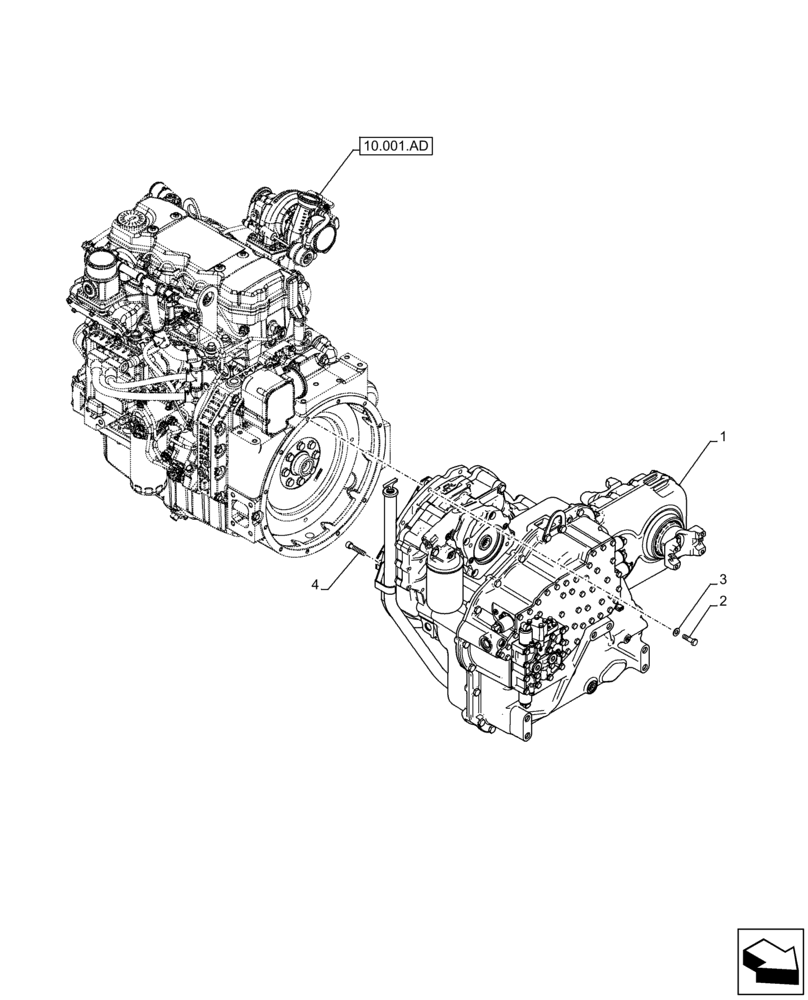

Схема запчастей Case IH FARMLIFT 635 - (21.113.AD[01]) - TRANSMISSION, POWERSHIFT (21) - TRANSMISSION
4
3
2
10.001.ad
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47562093

TRANSMISSION

ASSY (6+3)

1шт.

See Trasmission Components also in Figures 21.105.BC, 21.113.AF, 21.113.AR, 21.113.AQ (01), 21.113.AQ (02)

1шт.

See Trasmission Components also in Figures 21.113.AU, 21.135.AQ (01), 21.135.AQ (02), 21.135.AQ (03)

1шт.

See Trasmission Components also in Figures 21.155.AA (01), 21.155.AA (02), 21.155.AA (03), 21.155.AA (04)

1шт.

See Trasmission Components also in Figures 21.155.AA (05), 21.155.AA (06), 21.155.AH (01), 21.155.AH (02)

1шт.

See Trasmission Components also in Figures 21.155.AN, 21.155.AY (01), 21.155.AY (02), 21.155.BA, 21.700.AA

1шт.

See Trasmission Components also in Figures 21.900.AA, 21.900.AB, 55.020.AB, 55.024.AH (01), 55.024.AH (02)

1шт.

2

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

12шт.

3

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

12шт.

4

14420631

HEX SOC SCREW,M10 x 1.5 x 50mm, Cl 10.9

4шт.
