Запчасти Case IH FARMLIFT 632 (10.216.BA[02]) - FUEL TANK, LINES (10) - ENGINE

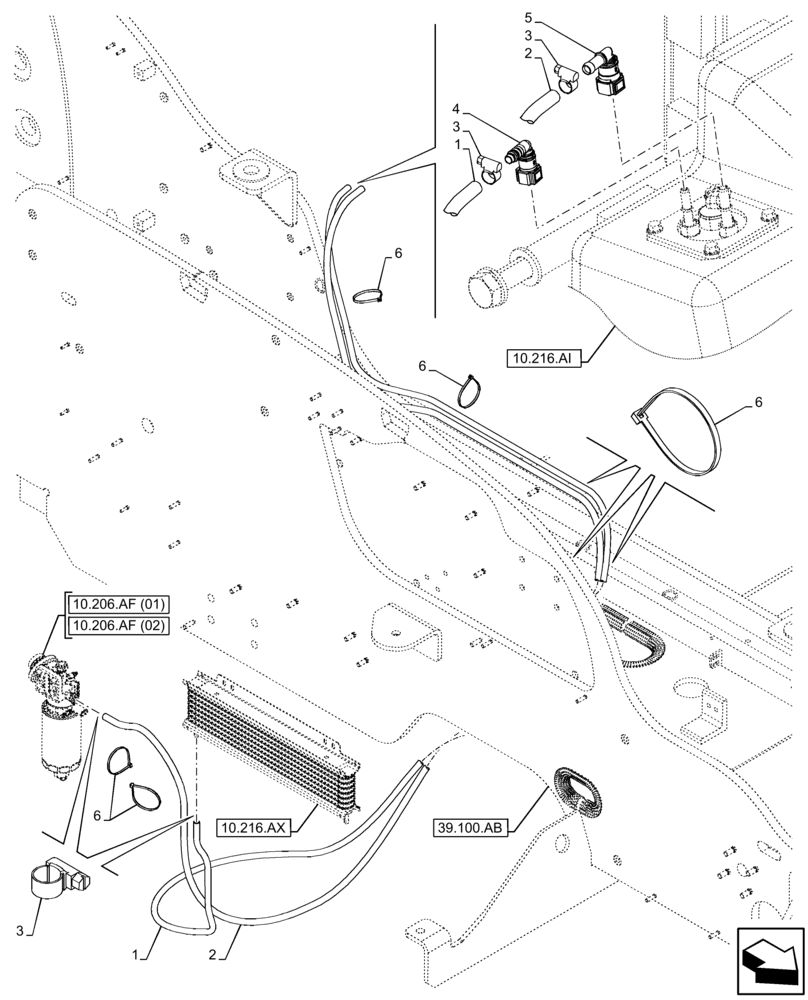

Схема запчастей Case IH FARMLIFT 632 - (10.216.BA[02]) - FUEL TANK, LINES (10) - ENGINE
6
6
2
10.206.af (02)
3
3
2
10.216.ax
39.100.ab
10.206.af (01)
3
1
4
6
10.216.ai
5
1
6

Артикул

Название

Примечание

Количество

1

47481475

FUEL HOSE

Tank to Cooler

1шт.

2

47481473

FUEL HOSE

Return, Water Separator to Tank

1шт.

3

85824381

HOSE CLAMP,8mm - 16mm

4шт.

4

84367132

FITTING,5/16'

Tank to Cooler

1шт.

5

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

Return, Water Separator to Tank

1шт.

6

14560287

CABLE TIE,207.00mm L

7шт.

Выбрано товаров: 6
