(90.108.AC[02]) - DECALS, INSTRUMENT CLUSTER (6M)

Запчасти Case IH FARMLIFT 632 (90.108.AC[02]) - DECALS, INSTRUMENT CLUSTER (6M) (90) - PLATFORM, CAB, BODYWORK AND DECALS

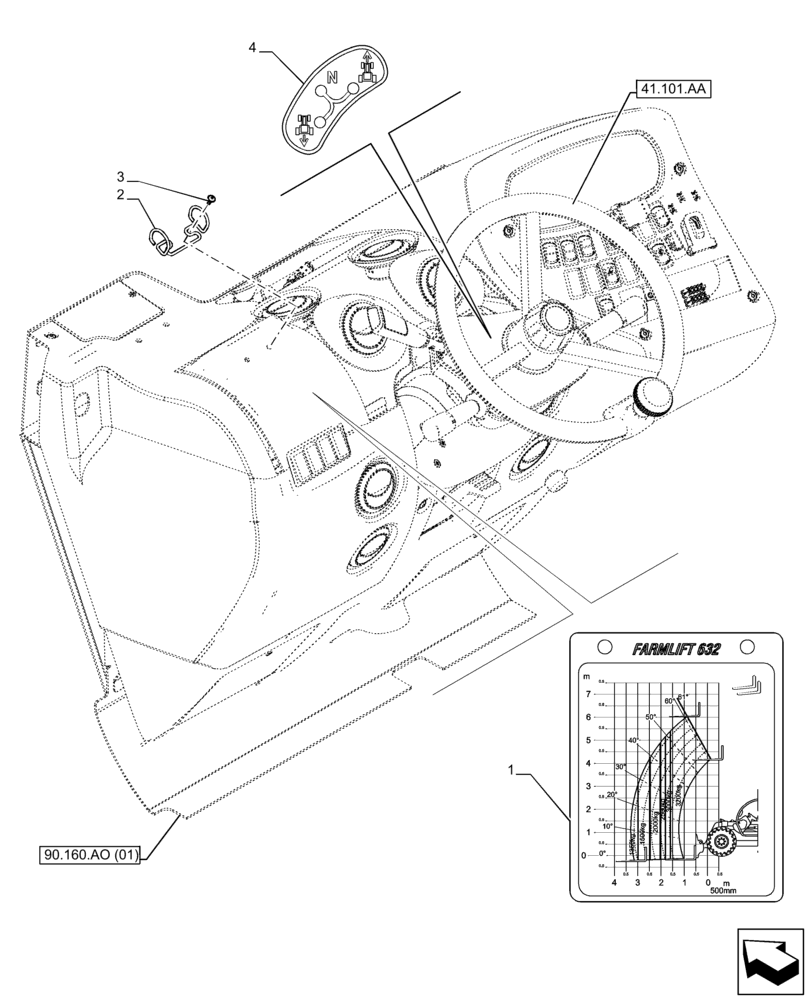

Схема запчастей Case IH FARMLIFT 632 - (90.108.AC[02]) - DECALS, INSTRUMENT CLUSTER (6M) (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ao (01)
41.101.aa
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47513829

DECAL

Load Diagram

1шт.

2

47395840

SUPPORT

1шт.

3

1983571

HEX SOC SCREW,M5 x 12mm, Cl 10.9

2шт.

4

84178421

DECAL

Latched Shuttle

1шт.

Выбрано товаров: 4
