(55.988.AD[02]) - DEF/ADBLUE™, HARNESS, FRONT

Запчасти Case IH FARMLIFT 632 (55.988.AD[02]) - DEF/ADBLUE™, HARNESS, FRONT (55) - ELECTRICAL SYSTEMS

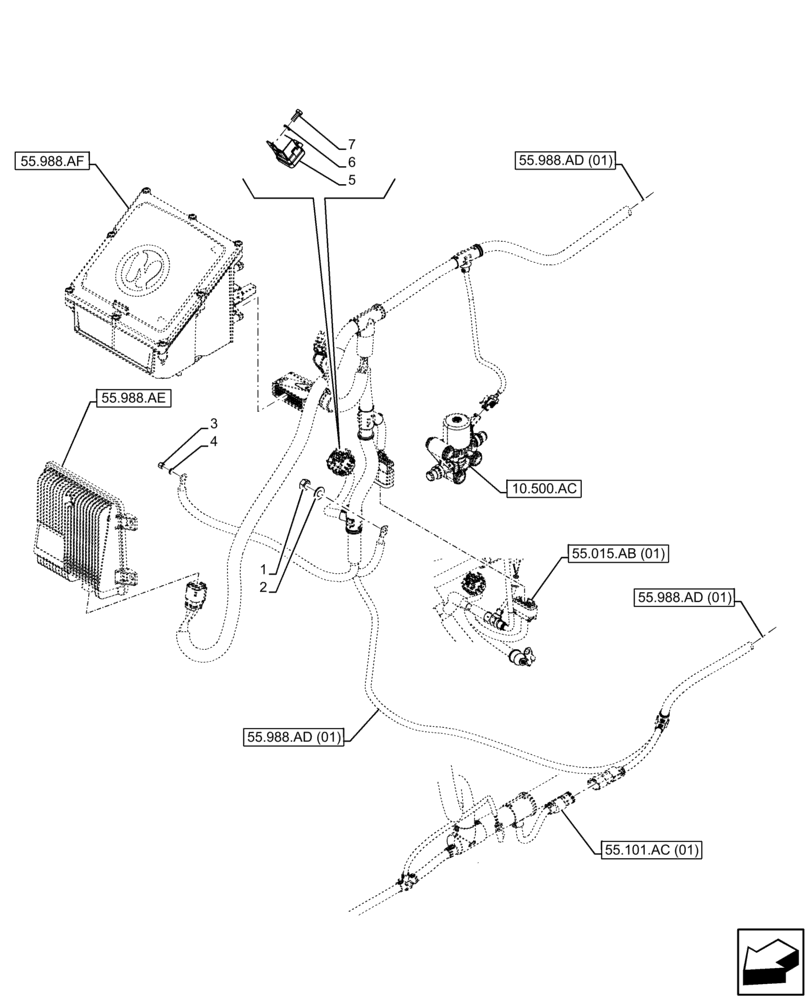

Схема запчастей Case IH FARMLIFT 632 - (55.988.AD[02]) - DEF/ADBLUE™, HARNESS, FRONT (55) - ELECTRICAL SYSTEMS
55.988.ad (01)
55.015.ab (01)
55.988.ae
5
55.988.af
2
6
55.101.ac (01)
7
4
55.988.ad (01)
3
55.988.ad (01)
10.500.ac
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86500689

NUT,M10 x 1.5, Cl 10

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

3

12574121

LOCK NUT,Hex, M5 x 0.8, Cl 10

1шт.

4

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

1шт.

5

86508603

RELAY,12V

1шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

Выбрано товаров: 7
