(55.510.AF[02]) - CAB MAIN WIRE HARNESS

Запчасти Case IH FARMLIFT 632 (55.510.AF[02]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

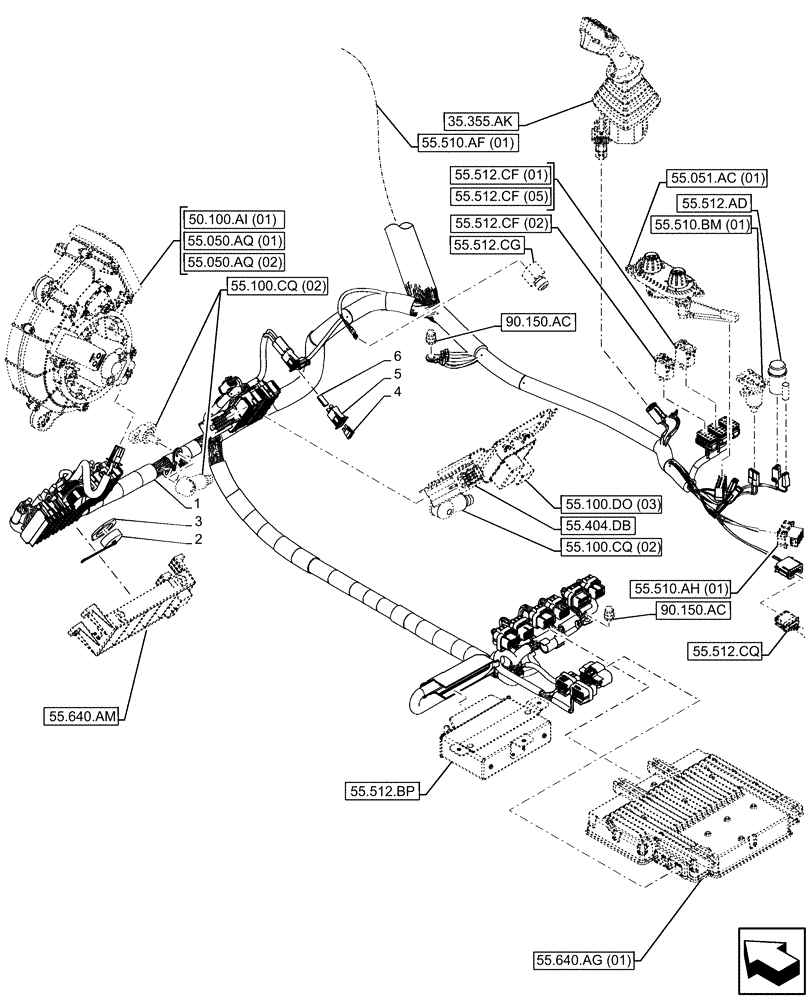

Схема запчастей Case IH FARMLIFT 632 - (55.510.AF[02]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.050.aq (02)
6
3
2
5
4
1
55.512.cf (05)
35.355.ak
55.050.aq (01)
55.512.ad
50.100.ai (01)
55.512.bp
55.100.do (03)
55.512.cf (01)
55.510.bm (01)
55.640.ag (01)
55.512.cg
55.100.cq (02)
55.100.cq (02)
90.150.ac
90.150.ac
55.640.am
55.051.ac (01)
55.510.af (01)
55.404.db
55.510.ah (01)
55.512.cq
55.512.cf (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47707746

WIRE HARNESS

Cab Main, Years: -02-JUN-15

1шт.

1

47802635

WIRE HARNESS

Cab Main, Start Year: 03-JUN-15

1шт.

2

87737474

LID

1шт.

3

87737472

JAM NUT,Hex, M35 x 1

1шт.

4

84371391

FUSE,40A

40A

1шт.

5

47487329

FUSE HOLDER

1шт.

6

47433077

WIRE CONNECTOR

1шт.

Выбрано товаров: 7
