(55.510.AF[01]) - CAB MAIN WIRE HARNESS

Запчасти Case IH FARMLIFT 632 (55.510.AF[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

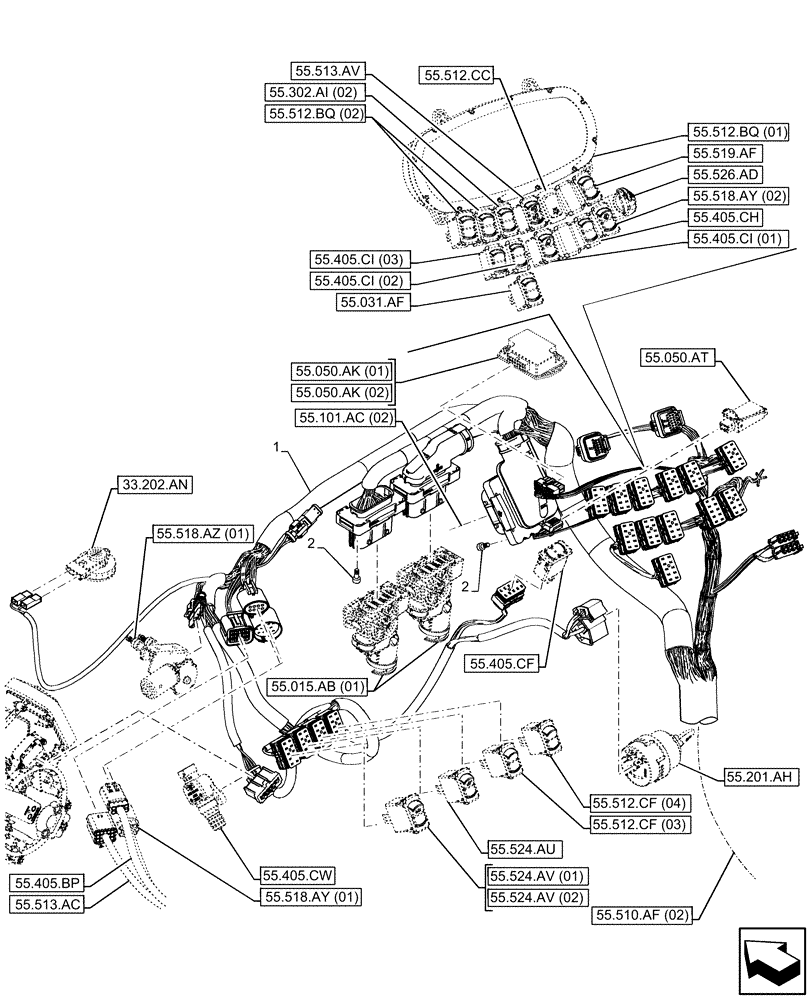

Схема запчастей Case IH FARMLIFT 632 - (55.510.AF[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
33.202.an
1
2
2
55.524.av (02)
55.512.cc
55.513.ac
55.513.av
55.405.bp
55.050.ak (01)
55.101.ac (02)
55.405.ci (03)
55.526.ad
55.512.bq (02)
55.518.ay (01)
55.519.af
55.518.az (01)
55.524.au
55.302.ai (02)
55.050.at
55.405.ci (01)
55.512.cf (04)
55.050.ak (02)
55.405.cw
55.512.bq (01)
55.201.ah
55.015.ab (01)
55.405.cf
55.518.ay (02)
55.031.af
55.405.ci (02)
55.510.af (02)
55.512.cf (03)
55.405.ch
55.524.av (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47707746

WIRE HARNESS

Cab Main, Years: -02-JUN-15

1шт.

1

47802635

WIRE HARNESS

Cab Main, Start Year: 03-JUN-15

1шт.

2

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

12шт.

Выбрано товаров: 3
