(55.404.BS[01]) - WORKING LIGHT, CAB, FRONT

Запчасти Case IH FARMLIFT 632 (55.404.BS[01]) - WORKING LIGHT, CAB, FRONT (55) - ELECTRICAL SYSTEMS

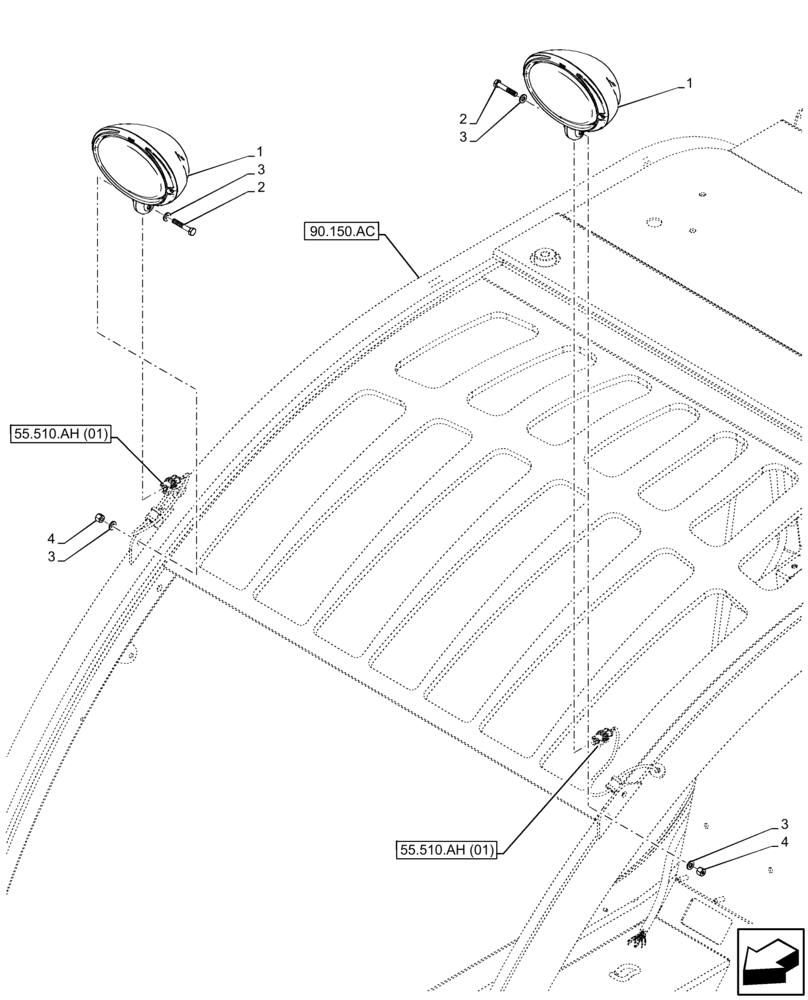

Схема запчастей Case IH FARMLIFT 632 - (55.404.BS[01]) - WORKING LIGHT, CAB, FRONT (55) - ELECTRICAL SYSTEMS
3
3
1
3
55.510.ah (01)
4
1
2
3
4
55.510.ah (01)
2
90.150.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87630899

LIGHT

Working, Cab, Front

2шт.

2

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

4

12574221

NUT,M6 x 1, Cl 10

2шт.

Выбрано товаров: 4
