Запчасти Case IH FARMLIFT 632 (55.202.AD[02]) - VAR - 749079 - COLD START SYSTEM, HARNESS (55) - ELECTRICAL SYSTEMS

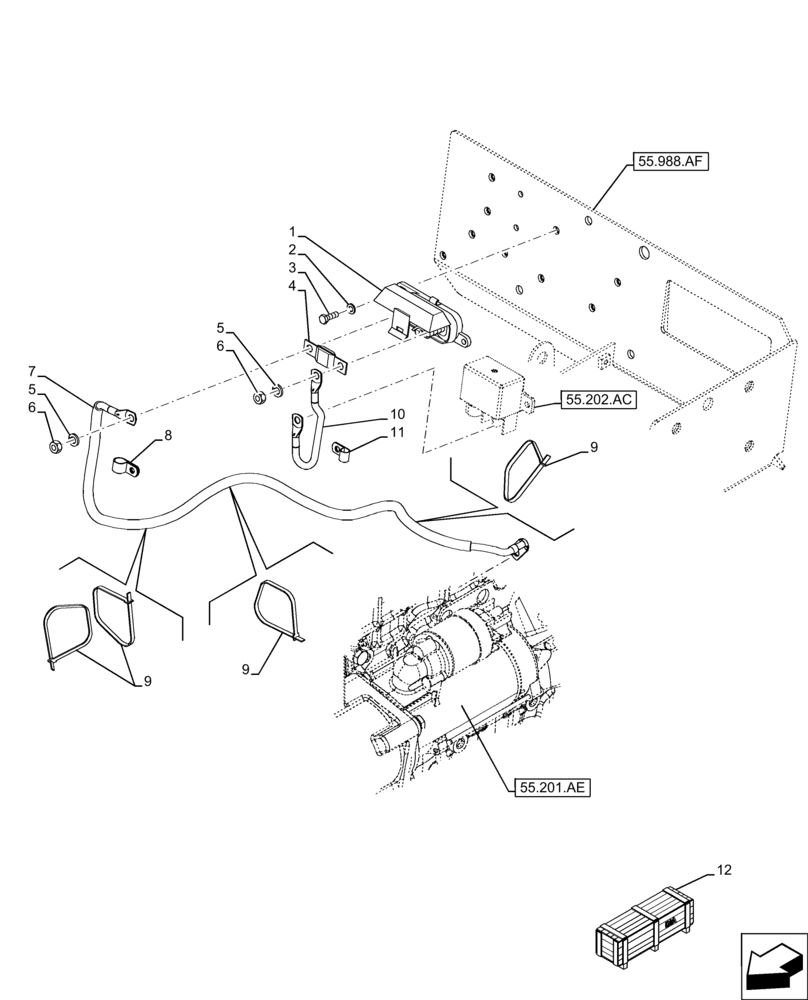

Схема запчастей Case IH FARMLIFT 632 - (55.202.AD[02]) - VAR - 749079 - COLD START SYSTEM, HARNESS (55) - ELECTRICAL SYSTEMS
6
4
12
5
9
8
55.202.ac
9
2
55.988.af
1
10
5
9
3
6
11
7
55.201.ae

Артикул

Название

Примечание

Количество

1

440038A1

JUNCTION BLOCK

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

3

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

4

87422637

FUSE,125A, Midival

125A

1шт.

5

892-11008

LOCK WASHER,8mm ID

2шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

84566955

ELECTRIC CABLE

From Starter Motor to Fuse Box

1шт.

8

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

9

4982514

CABLE TIE,188mm L

4шт.

10

84561498

ELECTRIC CABLE

From Fuse Box to Grid Heater Relay

1шт.

11

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

12

47610415

CONSTRUCTION DIA

Cold Start, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 14
