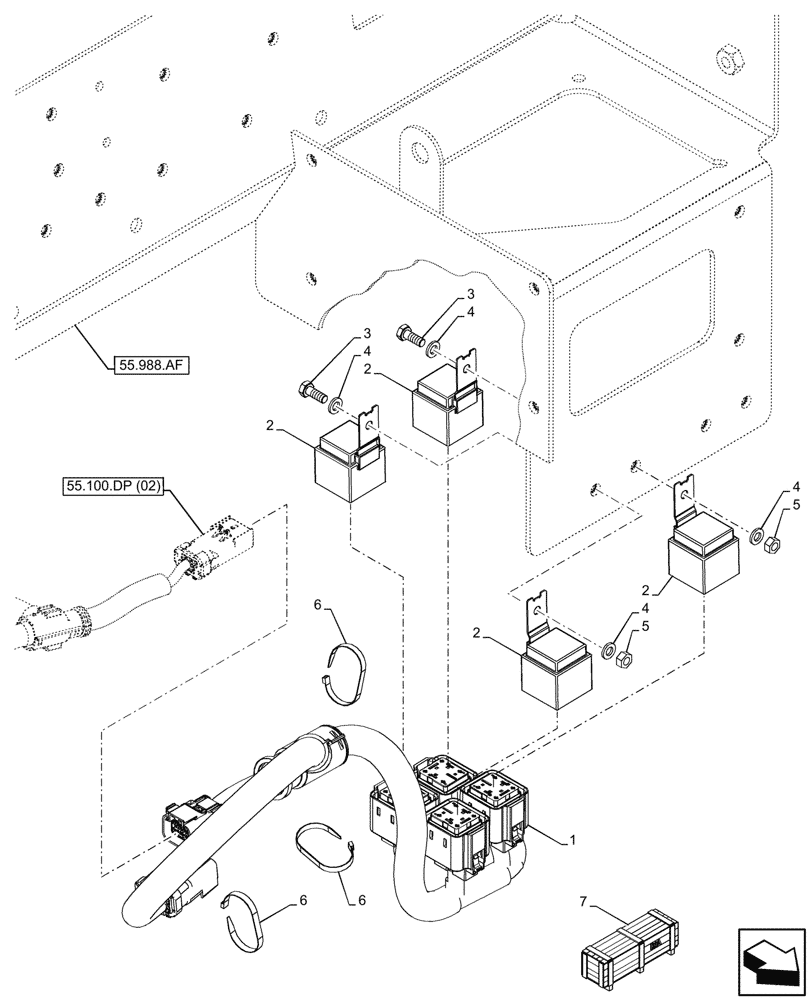

Запчасти Case IH FARMLIFT 632 (55.100.DP[01A]) - VAR - 749249 - REVERSIBLE FAN, HARNESS, RELAY - BEGIN DATE 29-JUN-2015 (55) - ELECTRICAL SYSTEMS

1

47806540

WIRE HARNESS

Reversible Fan

1шт.

2

87373196

RELAY

4шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

9706755

NUT,M6, Cl 8

2шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

3шт.

7

47936028

CONSTRUCTION DIA

Reversible Cooling Fan, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
