(55.036.AO[01]) - CONTROL VALVE, AUXILIARY SECTION, SOLENOID

Запчасти Case IH FARMLIFT 632 (55.036.AO[01]) - CONTROL VALVE, AUXILIARY SECTION, SOLENOID (55) - ELECTRICAL SYSTEMS

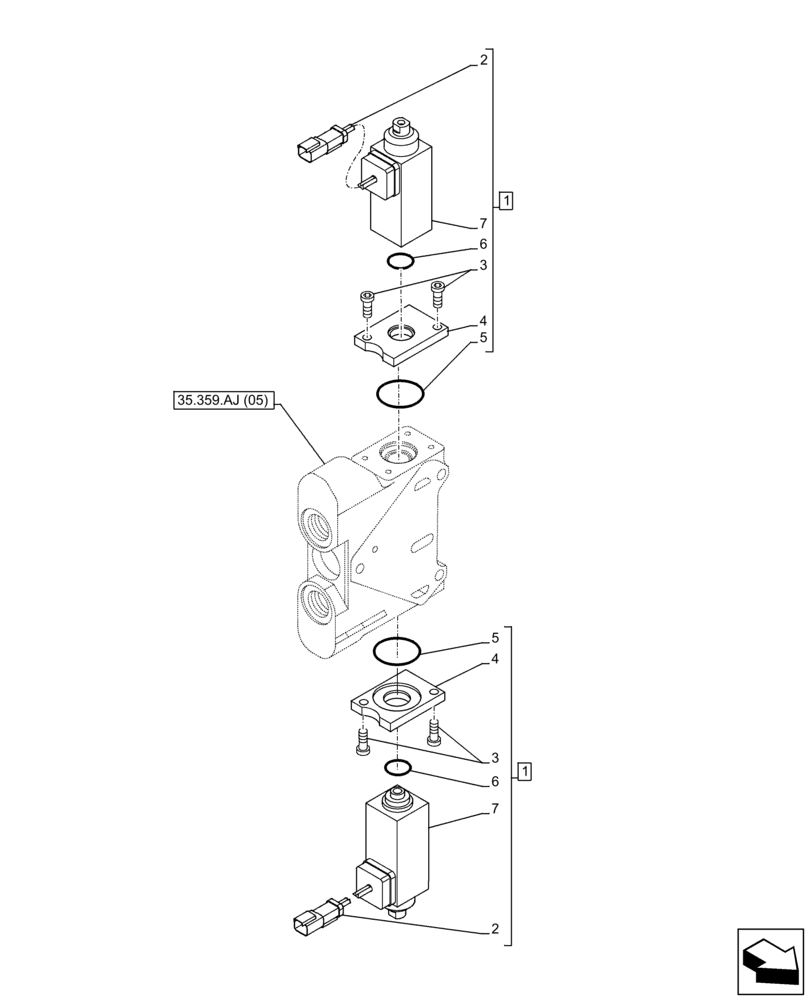

Схема запчастей Case IH FARMLIFT 632 - (55.036.AO[01]) - CONTROL VALVE, AUXILIARY SECTION, SOLENOID (55) - ELECTRICAL SYSTEMS
2
7
5
1
35.359.aj (05)
7
6
1
7
1
4
5
2
3
3
4
5
6
6
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76090105

KIT

Control Valve Solenoid, Auxiliary Section, ASSY, Incl 2 - 7

2шт.

2

47571301

ELEC CONNECTOR

2шт.

3

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

4

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

7

47571296

SOLENOID

2шт.

Выбрано товаров: 7
