(55.024.AH[02]) - TRANSMISSION, SOLENOID VALVE, SOLENOID VALVE, CONTROL VALVE

Запчасти Case IH FARMLIFT 632 (55.024.AH[02]) - TRANSMISSION, SOLENOID VALVE, SOLENOID VALVE, CONTROL VALVE (55) - ELECTRICAL SYSTEMS

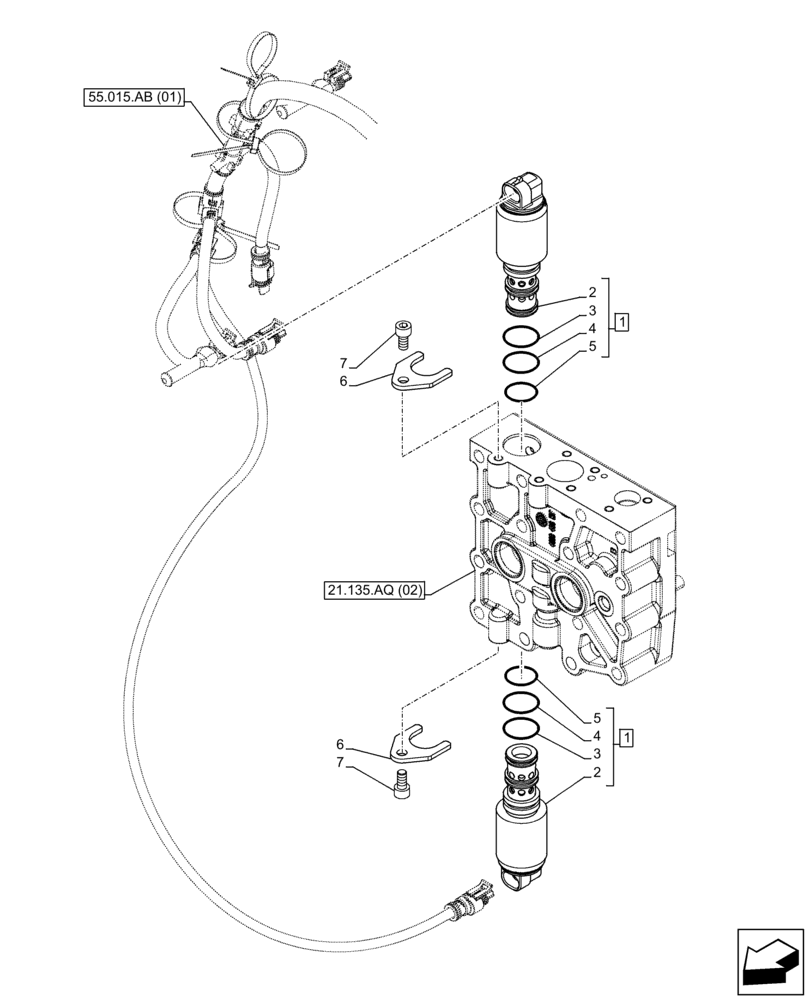

Схема запчастей Case IH FARMLIFT 632 - (55.024.AH[02]) - TRANSMISSION, SOLENOID VALVE, SOLENOID VALVE, CONTROL VALVE (55) - ELECTRICAL SYSTEMS
5
5
7
55.015.ab (01)
3
21.135.aq (02)
1
4
7
2
6
3
2
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47481730

SOLENOID VALVE

Y1, Y2, ASSY, Incl 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

Solenoid Valve, Incl in 1

2шт.

3

47549784

O-RING

2шт.

4

84408769

O-RING

2шт.

5

47549797

O-RING,2mm Thk x 17mm ID

2шт.

6

47481627

BRACKET

2шт.

7

47549795

SCREW

2шт.

Выбрано товаров: 7
