(35.740.AL[01]) - TILT CYLINDER, HOSE, REAR (6M)

Запчасти Case IH FARMLIFT 632 (35.740.AL[01]) - TILT CYLINDER, HOSE, REAR (6M) (35) - HYDRAULIC SYSTEMS

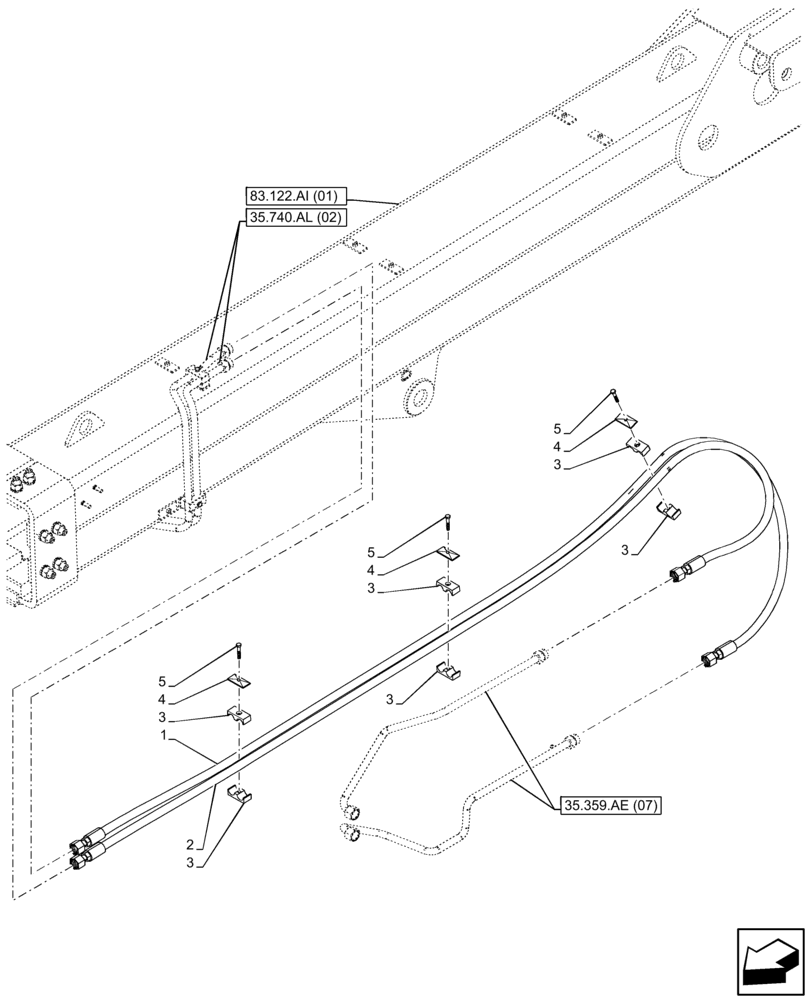

Схема запчастей Case IH FARMLIFT 632 - (35.740.AL[01]) - TILT CYLINDER, HOSE, REAR (6M) (35) - HYDRAULIC SYSTEMS
4
5
5
3
1
83.122.ai (01)
4
3
3
35.359.ae (07)
35.740.al (02)
3
2
3
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84566087

HYDRAULIC HOSE,15.88mm ID x 3460mm L, SAE 100R16

Tilt Cylinder

1шт.

2

84566088

HYDRAULIC HOSE,15.88mm ID x 3330mm L, SAE 100R16

Tilt Cylinder

1шт.

3

84547299

CLAMP

3шт.

4

84545714

COVER PLATE

3шт.

5

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

3шт.
