Запчасти Case IH FARMLIFT 632 (35.740.AE[02]) - BOOM CYLINDER, COMPONENTS (6M) (35) - HYDRAULIC SYSTEMS

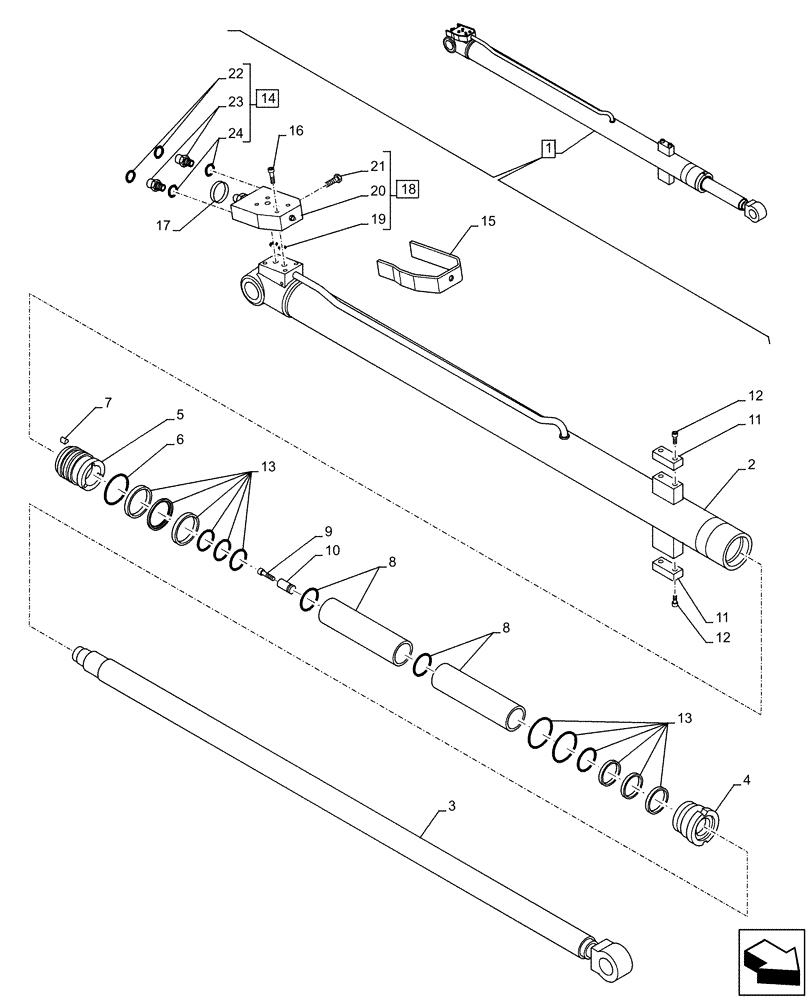

Схема запчастей Case IH FARMLIFT 632 - (35.740.AE[02]) - BOOM CYLINDER, COMPONENTS (6M) (35) - HYDRAULIC SYSTEMS
12
5
15
20
13
12
8
11
24
13
7
19
21
14
1
17
16
22
11
2
4
9
3
18
6
23
8
10

Артикул

Название

Примечание

Количество

1

84547703

HYDRAULIC CYLINDER

ASSY, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

47576387

PISTON ROD

1шт.

4

47576386

GUIDE

1шт.

5

47576385

PISTON

1шт.

6

47576383

RING

1шт.

7

87568682

LOCK SCREW

1шт.

8

47576325

SPACER

2шт.

9

47576309

SCREW

1шт.

10

47576319

BUSHING

1шт.

11

87568793

SUPPORT

2шт.

12

87568794

SCREW

4шт.

13

47576389

SEAL KIT

1шт.

14

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 22 - 24, Serial Range: -NFKB08101

2шт.

14

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 22 - 24, Start Serial: NFKB08102

2шт.

15

47636254

PROTECTION PLATE

1шт.

16

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

17

79083852

HOSE CLAMP,100mm - 125mm, Worm Gear

1шт.

18

84219581

VALVE

Oil Control, ASSY, Incl 19 - 21

1шт.

19

84207914

GASKET KIT

1шт.

20

NSS

NOT SOLD SEPARAT

Valve, Incl in 18

1шт.

21

84219579

PLUG

1шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

, Serial Range: -NFKB08101

2шт.

22

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

, Start Serial: NFKB08102

2шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

2шт.

24

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

Выбрано товаров: 26
