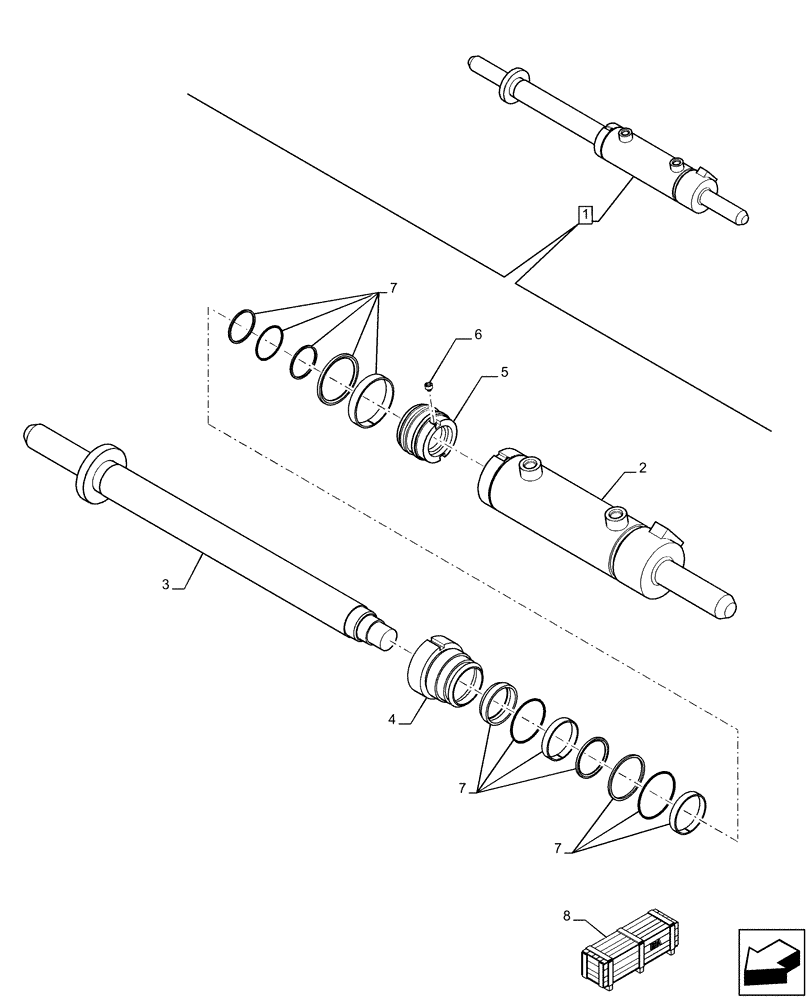

Запчасти Case IH FARMLIFT 632 (35.734.AA[04]) - VAR - 749148 - QUICK COUPLER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47546274

HYDRAULIC CYLINDER

ASSY, Incl 2 - 7, Years: -18-DEC-14

1шт.

1

47804258

HYDRAULIC CYLINDER

ASSY, Incl 2 - 7, Start Year: 19-DEC-14

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

47577358

PISTON ROD

, Years: -18-DEC-14

1шт.

3

47813299

PISTON ROD

, Start Year: 19-DEC-14

1шт.

4

47576673

GUIDE

1шт.

5

47576672

PISTON

1шт.

6

87568682

LOCK SCREW

1шт.

7

47576680

SEAL KIT

1шт.

8

47610756

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
