(35.701.BU[01]) - VAR - 749299 - FLOAT VALVE

Запчасти Case IH FARMLIFT 632 (35.701.BU[01]) - VAR - 749299 - FLOAT VALVE (35) - HYDRAULIC SYSTEMS

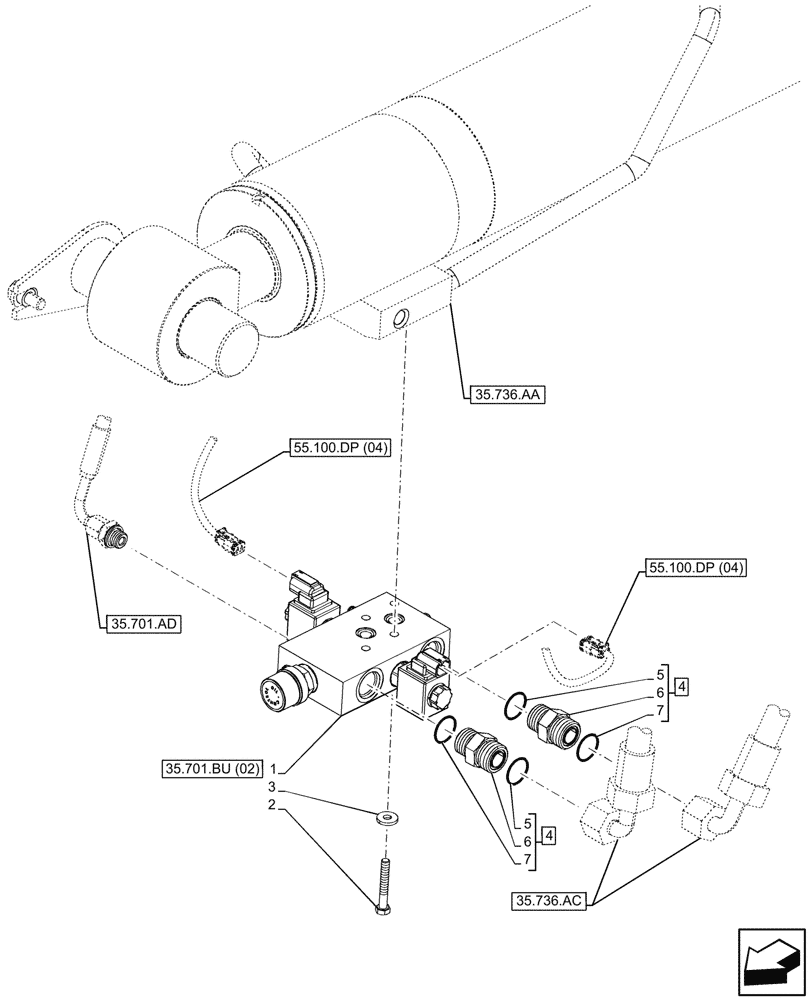

Схема запчастей Case IH FARMLIFT 632 - (35.701.BU[01]) - VAR - 749299 - FLOAT VALVE (35) - HYDRAULIC SYSTEMS
6
6
55.100.dp (04)
7
35.701.ad
4
35.701.bu (02)
2
4
5
7
35.736.aa
3
1
35.736.ac
5
55.100.dp (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87734698

FLOAT VALVE

ASSY

1шт.

2

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

3

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

4

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 5 - 7

2шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

2шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

Выбрано товаров: 7
