Запчасти Case IH FARMLIFT 632 (35.525.AI[01]) - VAR - 749494 - AUXILIARY HYDRAULIC, VALVE (35) - HYDRAULIC SYSTEMS

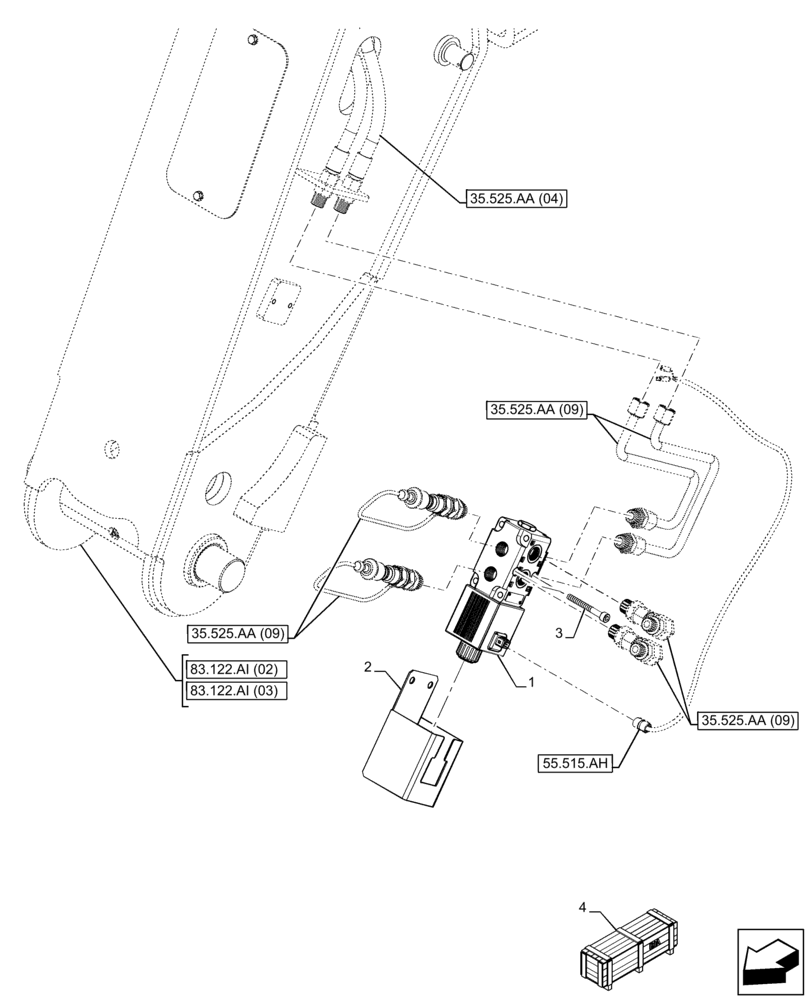

Схема запчастей Case IH FARMLIFT 632 - (35.525.AI[01]) - VAR - 749494 - AUXILIARY HYDRAULIC, VALVE (35) - HYDRAULIC SYSTEMS
83.122.ai (02)
35.525.aa (09)
35.525.aa (04)
2
1
35.525.aa (09)
4
83.122.ai (03)
3
35.525.aa (09)
55.515.ah

Артикул

Название

Примечание

Количество

1

87553474

VALVE

4th/5th Auxiliary Hydraulic

1шт.

2

87677357

GUARD

1шт.

3

14309034

HEX SOC SCREW,M8 x 1.25 x 70mm, Cl 10.9

2шт.

4

47610741

CONSTRUCTION DIA

Boom Double Auxiliary Hydraulic, For Mechanical Carrier, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 6
