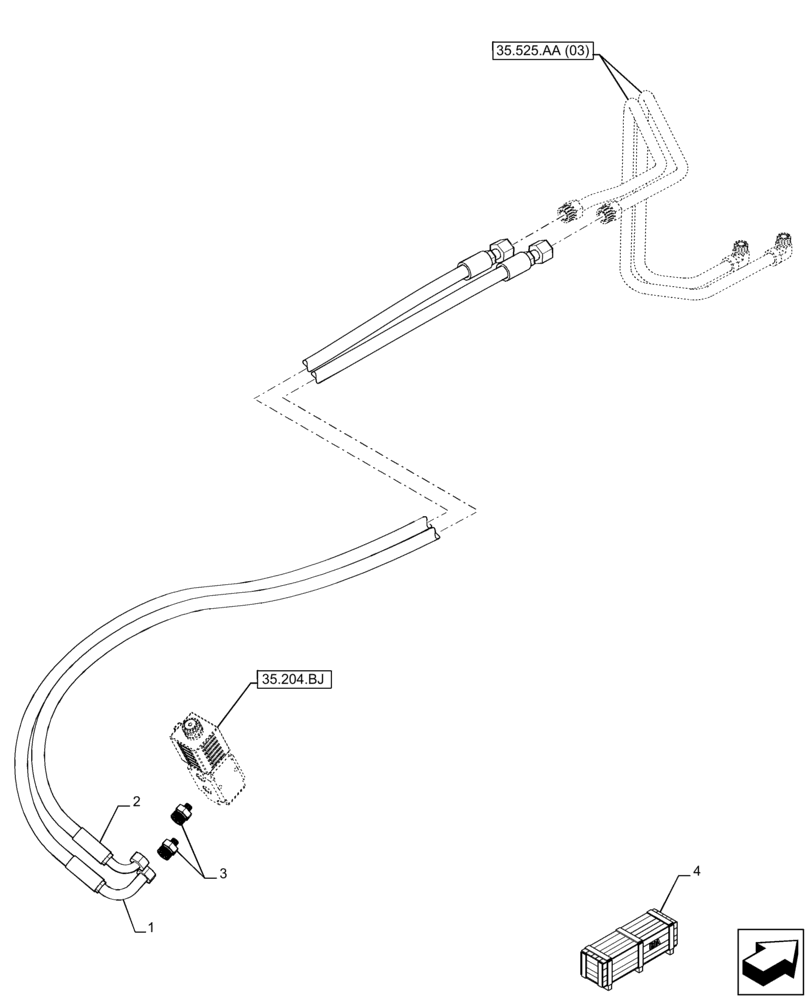

Запчасти Case IH FARMLIFT 632 (35.525.AA[07]) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, HOSE, BOOM (35) - HYDRAULIC SYSTEMS

1

84589246

HOSE,15.88mm ID x 3260mm L, SAE 100R16

Valve Port C4 to Boom Tube

1шт.

2

84589244

HOSE,15.88mm ID x 3235mm L, SAE 100R16

Valve Port C1 to Boom Tube

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

2шт.

4

47613198

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, LM6.32 NRC, LM6.35 NRC

1шт.

4

47613205

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 632, FARMLIFT 635

1шт.
