(35.525.AA[02]) - VAR - 702007 - AUXILIARY HYDRAULIC, LINE (6M)

Запчасти Case IH FARMLIFT 632 (35.525.AA[02]) - VAR - 702007 - AUXILIARY HYDRAULIC, LINE (6M) (35) - HYDRAULIC SYSTEMS

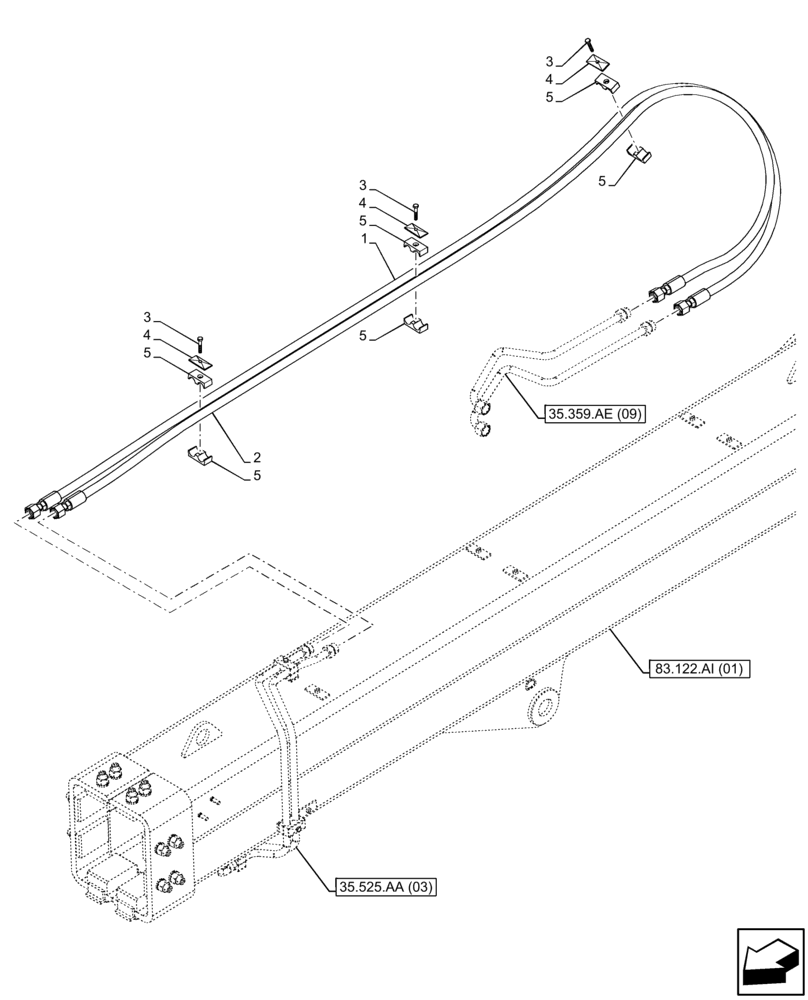

Схема запчастей Case IH FARMLIFT 632 - (35.525.AA[02]) - VAR - 702007 - AUXILIARY HYDRAULIC, LINE (6M) (35) - HYDRAULIC SYSTEMS
83.122.ai (01)
4
35.525.aa (03)
5
3
5
5
2
5
5
3
4
4
35.359.ae (09)
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84566085

HYDRAULIC HOSE,15.88mm ID x 3585mm L, SAE 100R16

Auxiliary

1шт.

2

84566086

HYDRAULIC HOSE,15.88mm ID x 3550mm L, SAE 100R16

Auxiliary

1шт.

3

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

3шт.

4

84545714

COVER PLATE

3шт.

5

84547299

CLAMP

3шт.
