Запчасти Case IH FARMLIFT 632 (35.359.BB) - HYDRAULIC MANIFOLD (35) - HYDRAULIC SYSTEMS

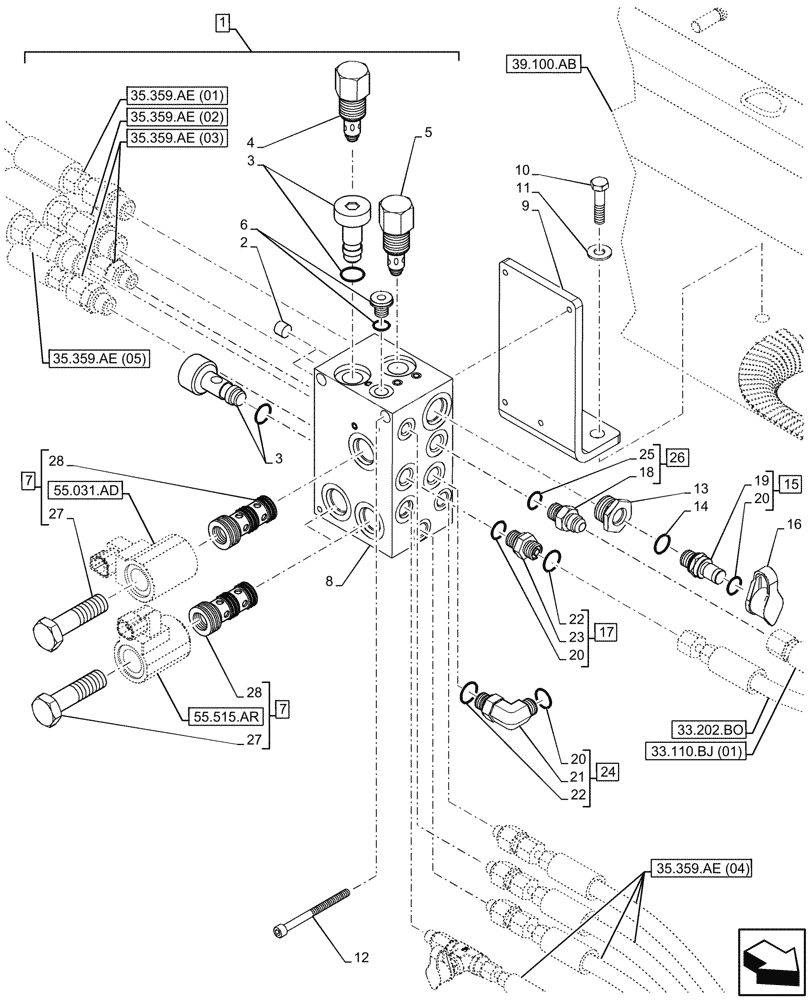

Схема запчастей Case IH FARMLIFT 632 - (35.359.BB) - HYDRAULIC MANIFOLD (35) - HYDRAULIC SYSTEMS
18
24
13
17
21
4
26
35.359.ae (03)
6
35.359.ae (04)
23
11
10
27
27
55.515.ar
12
7
20
33.110.bj (01)
2
19
9
35.359.ae (05)
14
3
39.100.ab
22
15
33.202.bo
35.359.ae (01)
22
16
25
7
28
5
20
28
20
3
55.031.ad
8
1
35.359.ae (02)

Артикул

Название

Примечание

Количество

1

47649565

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 8, 27, 28

1шт.

2

47559828

ORIFICE

2шт.

3

47559791

CHECK VALVE

2шт.

4

47559813

CONTROL VALVE

1шт.

5

47559819

CONTROL VALVE

1шт.

6

71404658

PLUG

1шт.

7

47559751

CONTROL VALVE

ASSY, Incl 27, 28

3шт.

See Valve Components also in Figures 55.031.AD, 55.515.AR

1шт.

8

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

9

47365768

BRACKET

1шт.

10

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

2шт.

11

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

14300521

HEX SOC SCREW,M6 x 75mm, Cl 8.8

4шт.

13

87661594

REDUCER FITTING

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

5185423

COUPLING

ASSY, Incl 19, 20

1шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

17

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

ASSY, Incl 20 - 22, 23

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

1шт.

19

NSS

NOT SOLD SEPARAT

Male Quick Coupling, Incl 15

1шт.

20

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 24

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

24

84432241

90 ELBOW,90 Degree, 9/16"-18 ORFS x M14 x 1.5 ORB

ASSY, Incl 20 - 22

1шт.

25

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

26

79066938

FITTING

ASSY, Incl 18, 25

1шт.

27

NSS

NOT SOLD SEPARAT

Screw, Incl in 7

3шт.

28

NSS

NOT SOLD SEPARAT

Valve, Incl in 7

3шт.

Выбрано товаров: 29
